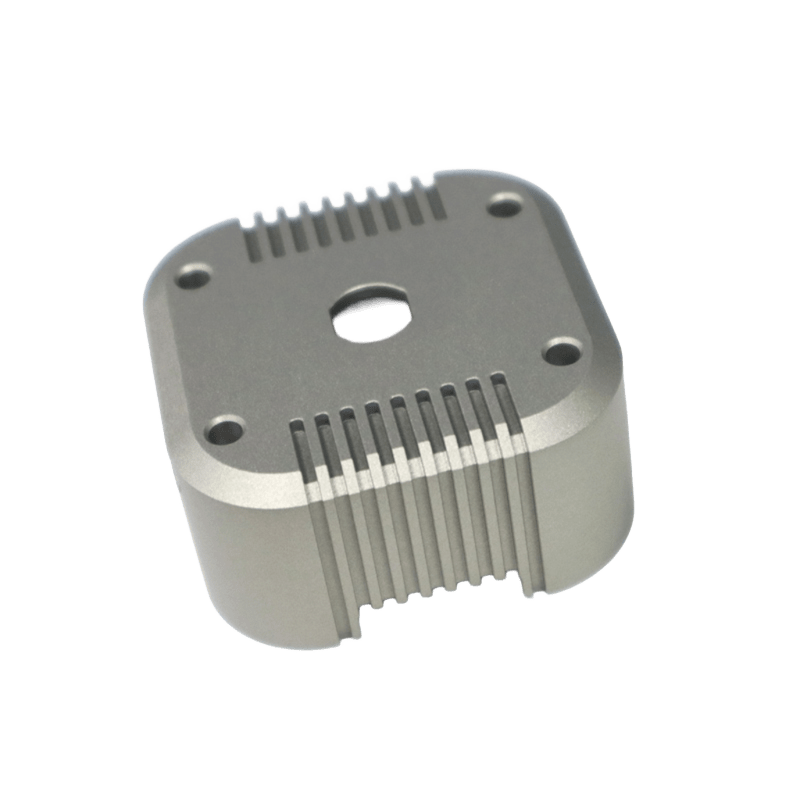

Aluminum 2024-T8510 CNC Machining

Heat Treatment of Aluminum 2024-T8510

The T8510 designation in Aluminum 2024-T8510 describes a specific series of treatments.

The T8 portion means the material is solution heat-treated, cold worked, and then artificially aged, a process that results in extremely high strength.

The 510 portion signifies that the material has been stress-relieved by stretching. This critical step removes internal stresses created during quenching, providing exceptional dimensional stability and preventing parts from warping during intensive CNC machining. This dual-process creates a strong, stable material ideal for precision aerospace components.

Chemical Composition of Aluminum 2024-T8510



The chemical composition of Aluminum 2024-T8510 is precisely controlled to achieve its superior mechanical properties. The main chemical constituents include:

Element Content (%) Role
Copper (Cu) 3.8 - 4.9 The primary strengthening element, significantly increasing the alloy's strength and hardness.
Magnesium (Mg) 1.2 - 1.8 Further enhances strength, especially after heat treatment.
Manganese (Mn) 0.3 - 0.9 Improves mechanical properties and increases corrosion resistance.
Iron (Fe) ≤ 0.5 An impurity element whose content must be strictly controlled.
Silicon (Si) ≤ 0.5 An impurity element whose content must be strictly controlled.
Zinc (Zn) ≤ 0.25 A minor addition that can influence alloy properties.
Titanium (Ti) ≤ 0.15 Refines grain structure, improving the mechanical properties of castings.
Chromium (Cr) ≤ 0.10 Improves resistance to stress corrosion cracking.
Aluminum (Al) Remainder The base metal.

General Characteristics of Aluminum 2024-T8510

As a high-strength Aerospace Aluminum Alloy, 2024-T8510 is prized for its fatigue resistance and good machinability, making it ideal for critical components produced by precision CNC machining.
Expert CNC Machining: We Know Materials Inside Out.

Physical properties

Density 2.78 g/cm³
Corrosion resistance High
Melting Point Approximately 502 - 638 °C
Magnetism Non-magnetic
Coefficient of Thermal Expansion Around 23.2 µm/m-K
Thermal Conductivity Approximately 120 W/m-K
Electrical properties Approximately 30% IACS (International Annealed Copper Standard)

Mechanical properties

Ultimate Tensile Strength (UTS) Approximately 470 MPa (68,000 psi)
Yield Strength (0.2% Offset) Approximately 420 MPa (61,000 psi)
Elongation at break 10%
Modulus of Elasticity (Elastic Modulus) 73.1 GPa (10,600 ksi)
Fatigue Strength Approximately 138 MPa (20,000 psi)
Brinell Hardness About 120 HB
Vickers hardness About 140 HV

Available Surface Finishing

Anodizing Possible, but mainly used to increase wear resistance (hardcoat anodizing); decorative results are inferior to the 6061 series.
Powder Coating Excellent applicability. Provides superior protection and a decorative finish; a common method for covering and protecting the 2024 alloy.
Electroplating Applicable. Can be plated with metals like nickel or chrome to enhance surface hardness, wear resistance, or conductivity.
Chromate Conversion Coatings Excellent applicability. Provides good corrosion resistance and serves as an excellent primer for painting or powder coating.

Types of CNC Machining Aluminum Process

We utilize state-of-the-art CNC technology to deliver unparalleled precision and quality for your Aluminum 2024-T8510 parts.

  • CNC Milling: Our multi-axis CNC mills can produce complex geometries and high-precision parts from solid blocks of aluminum.

  • CNC Turning: Suitable for producing parts with precise cylindrical features, such as shafts, pins, and connectors.

  • Swiss Turning: Ideal for machining small, complex, and intricate Aluminum 2024-T8510 parts with extreme efficiency and accuracy.

  • Drilling and Tapping: We provide precise hole-making and threading services to meet your assembly requirements.

cnc machining

Why Choose AT-Machining for Aluminum 2024-T8510?

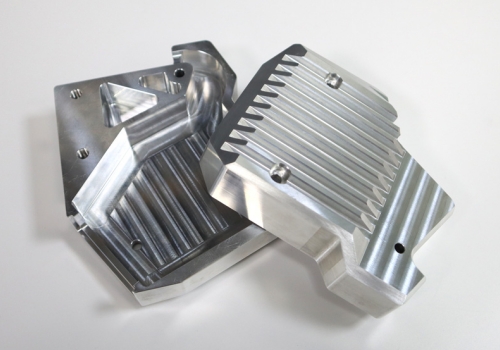

You Get Parts That Work Flawlessly

You get exceptionally precise parts that fit perfectly. Our expertise with 2024-T8510 ensures your components perform reliably every time.

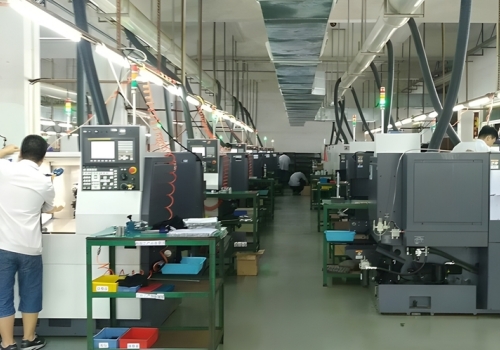

You Get Confidence and Peace of Mind

You get aerospace-grade quality and peace of mind. Our rigorous inspection process ensures every part meets your exact specifications.

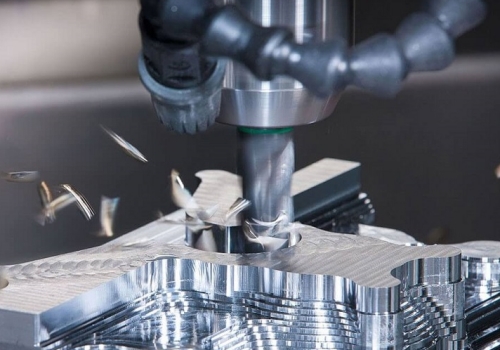

You Get a Simpler, Faster Process

You get a streamlined end-to-end solution. We manage material sourcing, machining, and finishing, saving you time and simplifying your workflow.

rapid production & delivery

You Get Your Project Done on Time

You get on-time delivery at a competitive price. Our efficient, optimized process helps keep your project on schedule and within budget.

Let's raise your project profit to the next level, NOW! →

Get an instant quote

Please compress the file into a ZIP or RAR file before uploading or send an email with attachments to: [email protected]

We will reply to you within 6 business hours.
