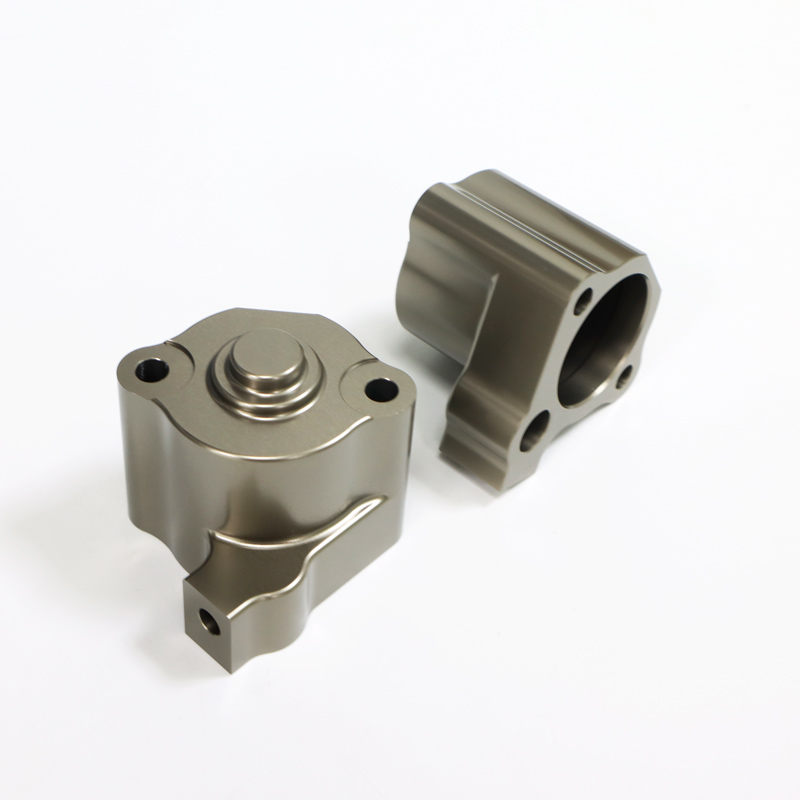

What is a Fillet?
In mechanical engineering, a fillet is a rounding of the inner (concave fillet) or external corner of a part design. A line with a concave fillet function on an interior corner and a line with a convex function on an exterior corner are examples of fillet geometry. Fillets are frequently found in junctions that are brazed, soldered, or welded.
Fillets are essential in the production of mechanical parts. The stress concentration of mechanical parts can be decreased by using fillets on spots and lines of anticipated high stress. The fillets effectively increase the strength and load-bearing capacity of the parts by distributing stress over a larger area.

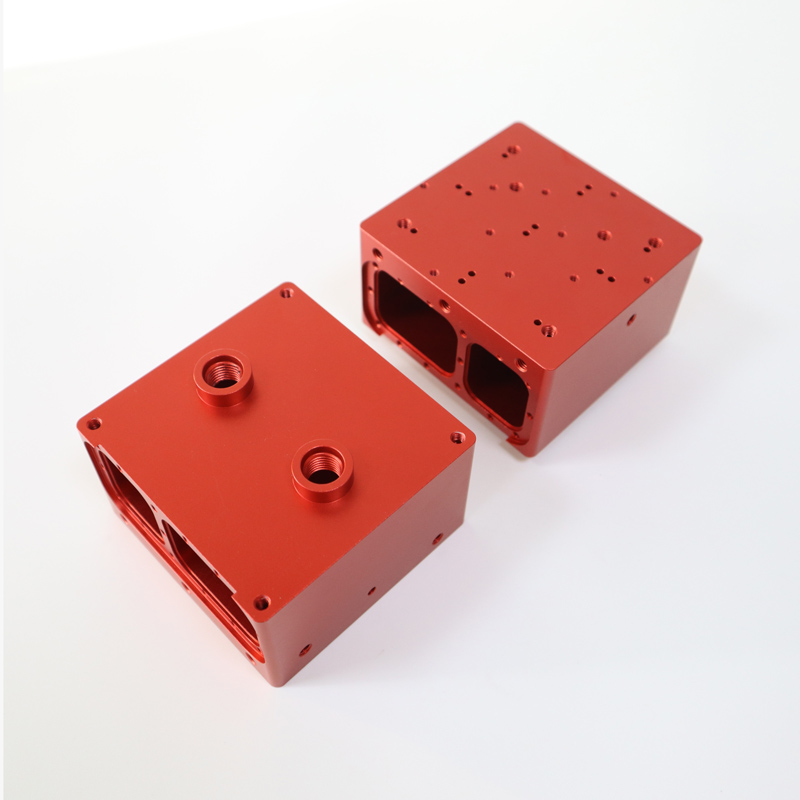

Furthermore, fillets are frequently used by machinists to remove sharp edges that are brittle or could injure workers when handling parts. They are usually produced with a ball end mill because most cutting tools create a curved internal corner where the vertical wall meets another surface..

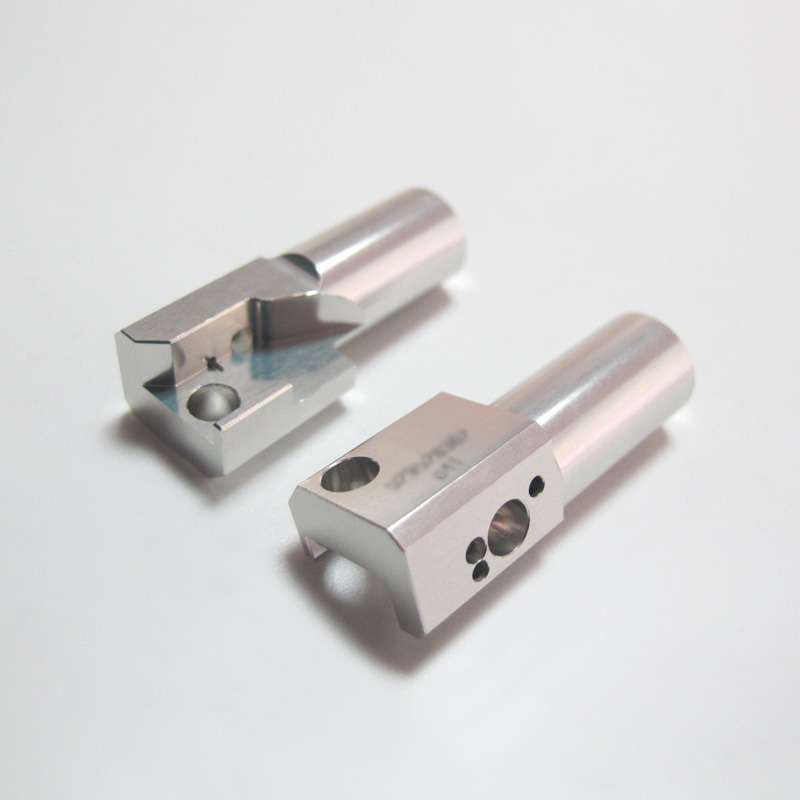

What is a Chamfer?
A chamfer is an interior or exterior corner that has an angle or bevel. A chamfer protects the edges from harm and makes non-uniform edges appear more consistent. Machinists add a chamfer to a corner that demands high stress concentration to concentrate the mechanical stress in a specific area.
Chamfers are widely used in machining, furniture construction, carpentry, concrete formwork, mirrors, and mechanical engineering design and assembly. Chamfered edges help with assembling mating parts by providing a lead in for fasteners, dowels, or pins, allowing for smoother pin movement and easier pin insertion. A chamfer creates a clean, technical look that many find aesthetically pleasing, especially for mechanical components or architectural parts.
Chamfers are often at 45° or 60° from the horizontal. It is frequently used to remove burr from drilling operations when the chamfer is 45° to the horizontal. It also allows the screw or bolt head to be recessed beneath the surface rather than protruding.
A 60° chamfer is commonly used for screw or bolt lead-ins. Chamfered edge make them less effective in reducing stress concentrations than fillets.

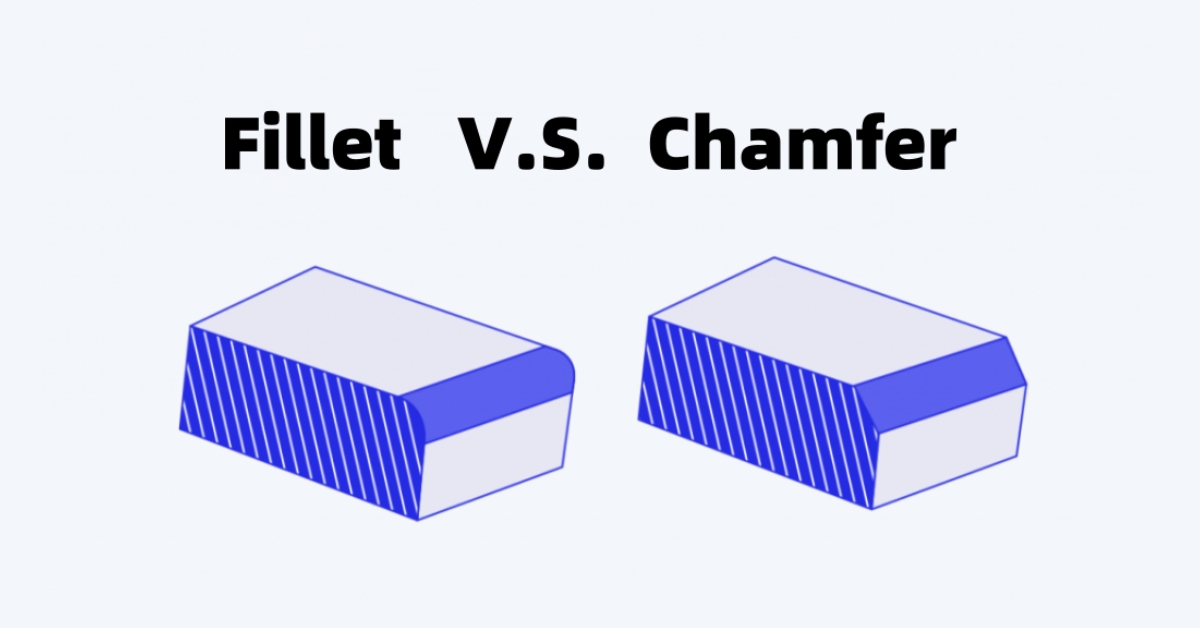

Fillet vs Chamfer: Main Differences
Here are the main differences between a fillet vs chamfer:
Shape
A fillet is a curved transition that blends two surfaces together in a smooth arc. It eliminates sharp corners and creates a smooth edge transition. A chamfer is a flat, beveled cut that replaces the sharp corner with a straight slope.
A fillet is always curved, while a chamfer consists of a straight edge at a certain angle, usually but not always 45 degrees.
Edge Feel
Fillets form a smooth, rounded corner that is comfortable to the touch. This makes them ideal for parts that will be handled extensively or come into contact with people.
Chamfers, conversely, maintain a clear edge break but one that is sloped and less sharp than the original corner. They provide a clean but slightly crisp feel. This suits mechanical and geometric designs features.
Stress Distribution
A significant functional distinction is in the way each form handles stress. A fillet distributes mechanical stress along its curved surface, reducing localized stress points that could lead to a crack or failure event.
This is beneficial in high-load or high-vibration applications. Chamfers will reduce some stress by removing the point, but will not distribute the stress in the same way to the same extent, and may allow stress to concentrate along the new edge.
Aesthetic Impact
Aesthetically, fillets give the parts a softer, more organic look traditionally associated with modern consumer products or aerodynamic shapes. Chamfers give a more technical or mechanical look, with precise geometric lines.
Designers may even choose one option over another purely for the visual style they want, even when both options may function the same.
Functionality
Fillets are often used to smooth the fluid or airflow around a component and to mitigate edge wear. They also offer a structural benefit by removing areas where stress can become concentrated. Fillets smooth edges so that sharp corners that can cause weak points are removed, while chamfers are usually a guide for assembly, as parts assemble more easily into a corner. Chamfers can also help in smoothing sharp edge, improving safety with very little change to the shape of the part.
Machining Time
Generally, fillets are longer to machine, and the radius size on the fillet will usually determine that, as a larger radius will require specialized forms or multiple passes to create the fillet.
Chamfers will usually cut down on machining time as they can usually be made in one pass with a standard cutting single tool. This can reduce machining cost in mass production.
Application
A fillet is useful for higher stress regions, components in contact with flowing liquids or gases, or geometry that needs a smooth, ergonomic profile.
A chamfer is well-suited when a clean, angular engagement is needed for assembly, when sharp edges are to be removed quickly, or when a crisp, technical look is desired.

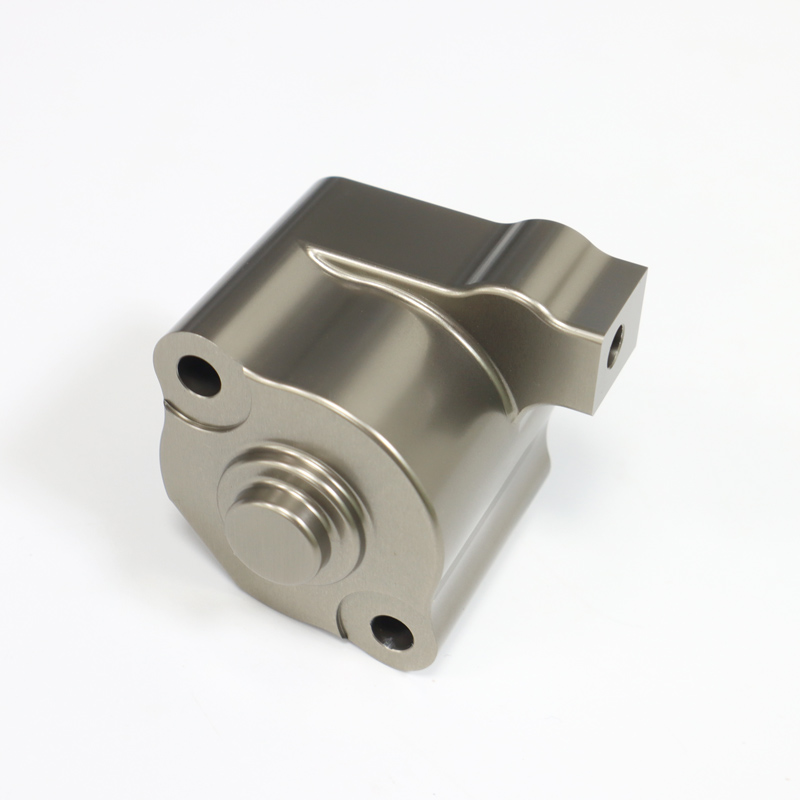

When to Use a Fillet
A fillet is the best choice when you want to create a rounded and smooth transition between two surfaces. It helps to avoid sharp edges that could cause injury. This design element is normal in fittings that need to relieve stress, as a rounded corner spreads the load, supports less concentrated forces, and limits potential weak points to minimize the risk of cracking.
Rounded transitions (fillets) enhance mechanical performance, increase life expectancy, and are favorable design considerations for avoiding sharp edges in applications such as gears, brackets, or load-bearing joints, which, if flawed, could lead to susceptibility to failure.
In addition, fillets machining are particularly useful for promoting the flow of fluids or air over surfaces. Extending a rounded edge is important in improving air and fluid movement, reducing turbulence, and consequently mitigating resistance, which can hinder efficiency.
Fillets edges also benefit consumer products and furniture designers by improving safety conditions that eliminate sharp edges or corners, which could hinder personal safety, add aesthetic value, and present customer satisfaction with ergonomics.
Fillets can make the machining process easier, especially when using CNC milling tools. The round cut cutter tips reduce internal corner cutting features, and the majority of cutting tools cannot make perfectly squared internal corners. Fillets can speed production, reduce tool wear, and be cost-efficient on final products. This combines function, safety, and manufacturability, which makes fillets most common in engineering design.

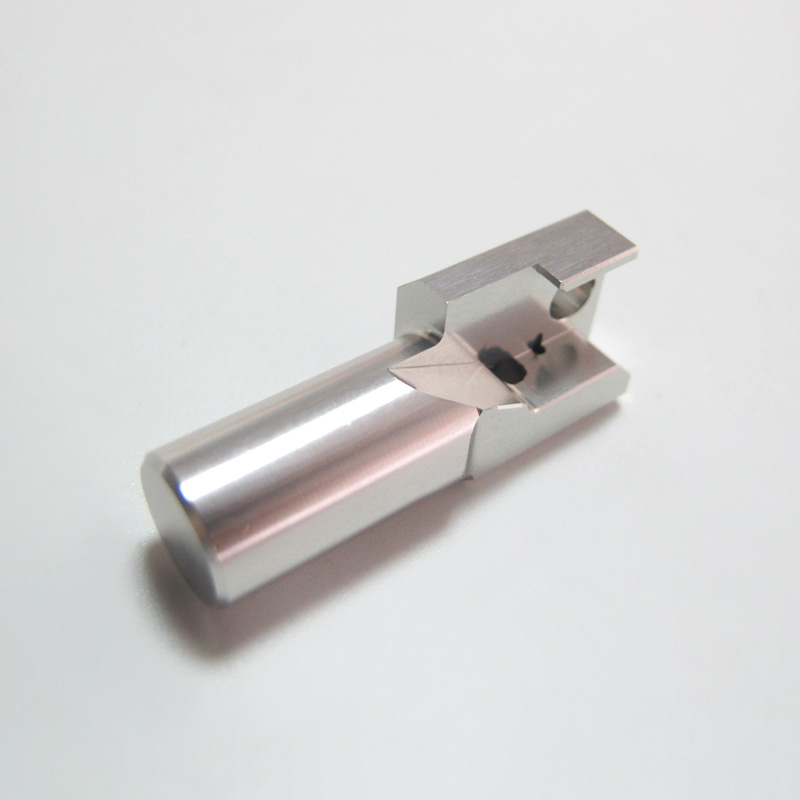

When to Use a Chamfer
A chamfer is preferable when you want to feature a slightly beveled edge, commonly because it aids assembly, handling, or aligns the part more easily. The angled edge would help locate components into position. This is useful in assemblies and a variety of fastener holes, as well as a press-fit.
Chamfers not only help with risky alignment for components, but if there is a sharp 90-degree edge, it removes that sharpness and thus reduces the chance for damaging the part during handling, or can help make a part easier to hold onto it providing an edge to grip.
Chamfers have an important role in the aesthetic appearance of a product as well; the flat, sloped edge can offer a very clean, precise, and professional finish that is often preferred in technology, furniture, and architectural elements. In mechanical design and engineering, chamfers can also help as lead-ins into bolts or drive screws, as they serve as a lead-in for a smooth introduction without wallowing out the threads.
From a manufacturing point of view, chamfers are easier to machine in some cases than fillets because they require less complex tool paths and less specialized tooling. They can also be beneficial in deburring because ultimately, we only want to remove the sharp outer edges because which pose a safety hazard and create stressful points on the part.
Chamfers present a great option for gaining efficiency from assembly and manufacturing processes, with some added protection for edges, and styling for an overall refined look to the design of a product.

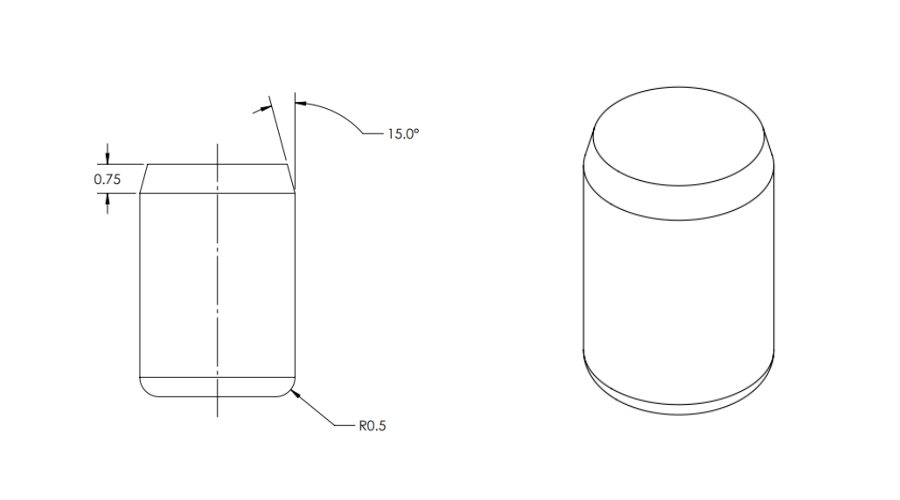

Factors to Consider When Choosing Between a Fillet and Chamfer
Several factors guide the choice between a fillet and a chamfer. The following points are some of the factors:
Function of the Part
Firstly, you must think about what function it will serve in the part. Fillets are great at reducing stress concentrations since the rounded shape and smooth, gradual transitions help distribute forces. Fillets work very well in high-stress applications, such as load-bearing brackets, mechanical joints, or parts in constant motion.
Chamfers may work well for particular applications where it would be advantageous to have a sharp edge for alignment or ease of assembly. For example, when guiding a bolt into a hole or helping parts fit together without some sort of catch.
Aesthetics
Apart from function, aesthetics can be equally important, especially in a consumer product. Fillets offer a softer, more organic look, making them a popular option in design attributes where smoothness and elegance are important; for example, in automotive interiors or consumer electronics.
Chamfers give sharper, more geometric lines, offering a technical, precise, and modern look that fits an industrial or mechanical style or when a cornered edge is appropriate.
Method of Production and Cost
The method of production may determine whether a fillet or chamfer is the more effective choice. With CNC machining precision, chamfers are typically faster and easier to create, as the cutting tool only needs to make a single pass at a specific angle. Fillets tend to necessitate several intricately programmed tool paths, which can result in additional time and cost.
When it comes to casting or molding, fillets can smooth material flow and help prevent weak points, whereas chamfers can assist in removing parts from the mold.
Material Type
Each material behaves differently when machined or molded. Brittle or fragile materials, such as certain ceramics or glass-filled plastics, could be designed with chamfers to eliminate fragile, sharp edges and reduce the chances of chipping.
Softer or ductile materials like aluminum or mild steel handle fillets for the same reasons, and the benefits of reducing stress on edges and/or rounded edges will help increase durability by reducing the risk of surface cracking over time.
Conclusion
While chamfers are more forgiving in chamfer mating parts, fillets can prevent rapid deformation and have lower stress concentration factors. In order to select the best design and machining process for your project, it is crucial that you comprehend the distinction between fillet definition engineering and chamfer definition engineering.
