Overview of Form Milling
Form milling involves removing material from a stationary blank with a special milling cutter that features multiple cutting edges to produce specific profiles, grooves, thread, and irregular contours on workpieces. This precision machining technique is a widely embraced method in modern manufacturing due to its consistency in making exact shapes and fabricating hardened materials.
The form milling process relies on the precise interaction between the blank and custom milling cutters. A form milling cutter usually possesses an inverse shape of the feature you want to produce on the workpiece. Your workpiece copies the profile of the cutter as it feeds past the rotating form cutter. Moreover, manufacturers often rely on form milling to create components that require a particular shape or special profile like keyways or gear teeth on irregular and curved surfaces.
Common form milling operations include milling half-round recesses and quarter-round radii. Other uses of form milling include internal rotary recess form milling, gear milling, groove milling, thread milling, full radius milling, and face milling.
Why Should You Choose Form Milling?
Manufacturers across industries leverage the many benefits of form milling as a top-tier manufacturing process. We’ll explore some of these common form milling benefits below:
Single-Pass Machining Capability
Form milling is a time-saving technique that can get the job done in one go. More importantly, it doesn’t require multiple tool changes or frequent machine setups. It allows you to create several parts with intricate patterns and complex geometries faster and more accurately. The form milling process helps minimize risks of possible errors to reduce production time and increase efficiency and throughput.
Cost-Effectiveness
Form milling cutting tools are usually a good investment even though they can be off-putting. These form tools require less cost of maintenance and you don’t have to worry about rapid wear. Moreover, form milling is a cost-efficient method for high-volume production runs since it is a single-pass machining technique.
High Precision and Accuracy
Form milling provides high-level precision that makes it ideal for applications where the slightest details matter. The specialized form milling machines feature special cutters that allow you to produce intricate designs and exact shapes ensuring you meet the stringent industry requirements such as tight tolerance.
Extensive Material Compatibility
The versatility of form milling makes it a standard machining process for various machining materials including ceramics, plastics, metals and composites. As a result, it is a widely utilized method across many industries for making diverse components.
Challenges of Form Milling
Although form milling allows manufacturers to handle parts complex components, the approach presents certain limitations including:
Dimension Constraints
Form milling only works with 2D and 2.5D shapes even though some machining methods work well with 3D shapes. As a result, it is incompatible with 3D contours and other complex molds. You may have to rely on 5-axis machining to machine a complex 3D mold.
Setup Complexity
Setting up the CNC machine for form milling operations can be complex because it time time-consuming and requires precise alignment of the cutter and workpiece. Moreover, the milling of complex surfaces requires skilled expertise and adequate planning to mitigate errors and avoid a clumsy machine setup.
Extended Machining Time
Due to its specialized nature, form milling operations can take longer than anticipated especially when machining shapes that are extremely difficult to achieve. As a result, you must carefully plan the procedure and take necessary precautions to achieve the desired form without sacrificing quality. However, this increases the overall production time in the long run.
Tool Wear
The workpiece and cutting tool often maintain contact during the form milling operation. You can execute the form milling process at extreme pressures and incredibly high speed which could result in tool wear over time. Tool wear occurs more frequently when machining harder materials, resulting in frequent tool changes. Failure to change the worn tools can impact precision, affecting productivity.
Need for Extra Finishing
Form milling provides decent surface finishing as low as 0.8 µm. Form-milled parts will need extra finishing to achieve a high-quality surface finish. You may need to grind or polish the surface of form-milled parts to achieve a better finish to meet the requirements of certain applications where a smooth and fine surface is non-negotiable. However, this extra finishing drives up cost and production time.
Real-World Applications of Form Milling
Form milling is a versatile technique in manufacturing with prominence across industries due to its ability to create desired features on complex surfaces with optimum control, accuracy and highest quality. Typical form milling applications include:
Gear Manufacturing
Form milling is a reliable technique manufacturers frequently employ to mill accurate gear teeth profiles. The custom form cutters give the gear teeth a shape that meets specific requirements, ensuring proper mesh and operational efficiency. This method is suitable for machining gears of different sizes including helical gears and bevel gears commonly used in industrial equipment, machinery and automotive systems.
Automotive and Aerospace Components

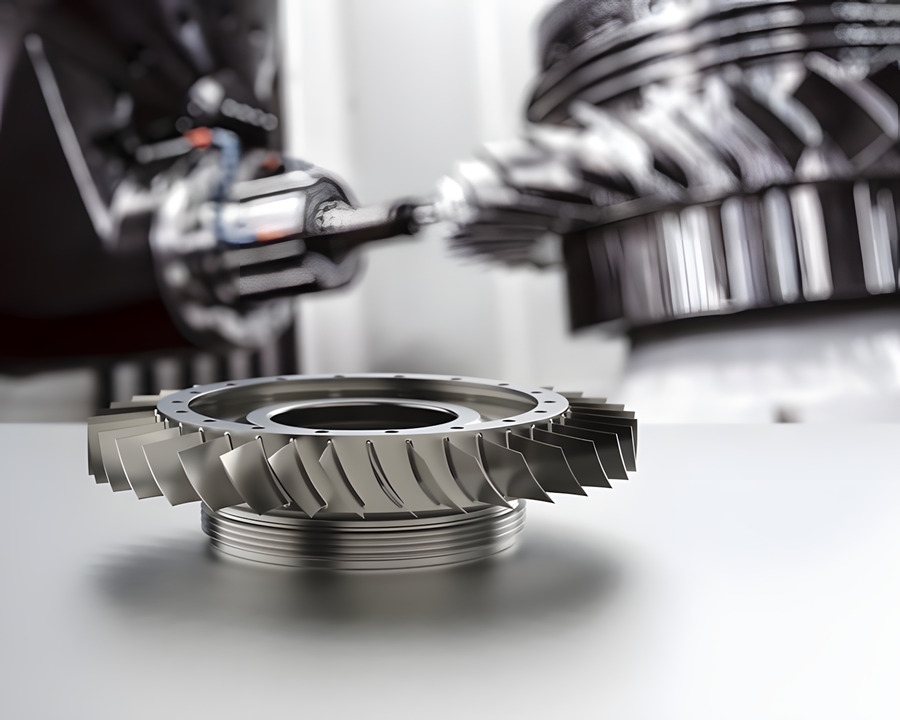

Automotive parts and aircraft manufacturers rely heavily on form milling to create precise and specialized components with intricate profiles like turbine blades, connecting rods, fuselage sections, and transmission parts used in vehicles and aircraft. These components often require specific shapes and need to meet tight tolerances which form milling can attain. More importantly, automotive components created with the form milling process meet the industry standards for effective performance and safety.
Die and Mold Making
Manufacturers leverage the advanced tooling and precision of form milling techniques to create accurate cavities for processes like injection molding stamping, and casting. Form milling works well for machining the complex profiles on dies and mold to achieve the highest quality and accuracy, ensuring they are reliable for mass production.
Custom Parts Manufacturing
You can employ the form milling process to fabricate different personalized components. Form milling facilitates the fabrication of custom parts with advanced profiles and shapes. Custom parts manufacturers leverage form milling capabilities to produce components that match the needs of specific applications or customers including prototyping or small batch manufacturing.
How Does Form Milling Compare to Other Milling Techniques?
Form milling differs from many conventional milling techniques. Hence, it is crucial to understand how this specialized technique compares to others:
Form Milling vs Plain Milling
Plain or surface milling uses slab cutters to remove material from flat horizontal surfaces. It is a straightforward process best for basic material removal. Unlike form milling, it lacks the required flexibility to handle complex designs.
Form Milling vs End Milling

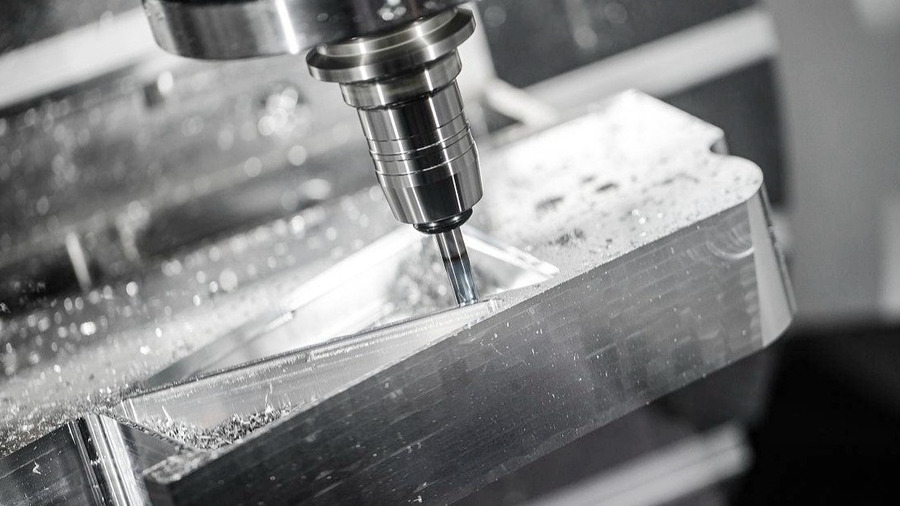

End milling involves the manufacturing of slots or flat surfaces with a ball-nosed or flat-end rotating cutting tool. Form milling works best in creating complex profiles whereas end milling is a versatile technique that works well during general machining. However, end milling doesn’t offer the precision required to fabricate curved and detailed shapes like form milling.
Form Milling vs Slot Milling
Slot milling involves using an end mill or slot cutters to cut rectangular and narrow slots or grooves in a particular workpiece. Although both form milling and slot milling techniques can create grooves in a component, form milling is best for handling designs that demand a unique and more customized approach.

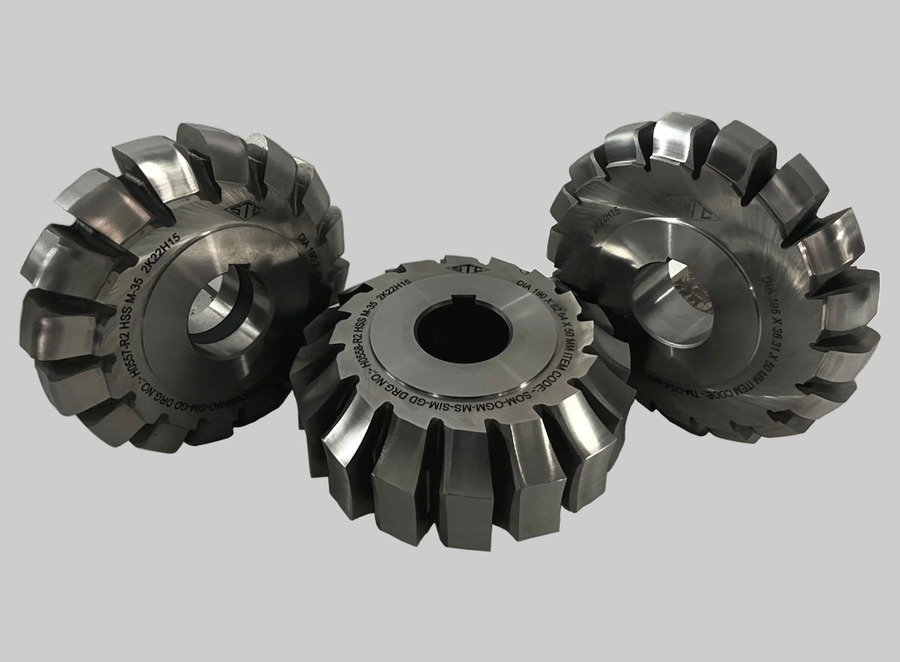

Common Types of Form Milling Cutters
Form milling cutting tools are of different types with each suitable for varying tasks. Here are the common form milling cutters:
Custom Form Tools
Solid form tools are standard milling cutters ground to match a profile and can cut features including hydraulic ports. Machinists often customize indexable form tools to fabricate multiple features at the same time including several diameters and chamfers. These custom tools help to achieve better accuracy and consistency when milling customized parts with intricate shapes such as splines. They feature custom shapes that allow them to deliver internal and external machining.
Convex and Concave Cutters
These form milling cutters are necessary tools for workpieces with curved shapes. The concave form milling cutter is available in different curvature radii and can create convex contours on a part. Convex cutters have half-round profiles suitable for producing concave features.
Each cutter has multiple insert teeth or flutes that remove material at a controlled rate. These flutes often vary in number depending on the size of the tool and the profile’s complexity. This design facilitates the accurate and seamless manufacturing of complex workpieces.
Corner Rounding Cutters
These form milling cutters have a concave quarter-circular profile perfect for rounding corners on a workpiece, creating smooth edges and fillets on the corners of a workpiece. Corner rounding cutters eliminate the regular steps of standard cutters to efficiently achieve smooth radii on corners. In addition, these cutters enhance aesthetics and reduce friction and stress points in your workpiece.
Materials Used to Make Form Milling Cutting Tools
Form milling cutters are available in different materials. The material of a form cutter is a key determinant of its performance and lifespan. Meanwhile, each of these materials exhibits varying levels of sharpness, hardness, and longevity. Hence, you should choose the right material that aligns with the requirements of the intended application. Here are common materials used in form milling cutters:
- High-Speed Steel (HSS): HSS tools are a cost-effective option suitable for milling softer materials. Although these cutters are tough, easy to reground, and can survive high cutting speeds, they have low wear resistance.
- Carbide: This is a robust material with excellent temperature and wear resistance. Carbide form cutters are best for tough jobs such as milling hard materials at high speeds since they possess high hardness. Carbide cutters are easy to maintain. Therefore, they remain sharp and have longer lifespans even when operating at higher cutting speeds.
- Cobalt Steel: Cobalt steel is a durable steel with high heat resistance properties. They contain more cobalt than HSS and have high heat tolerance and can stay hard even when exposed to heat. Machinists often use cobalt steel cutters for hard materials due to their exceptional properties.
- Ceramics: They are great for handling high-temperature tasks due to their excellent hardness, toughness, and heat resistance properties. Ceramic form cutters can remain stable under extreme heat exposure. However, these tools are unsuitable for heavy-duty applications because they can break easily.
- Cermet: Cermet comprises metallic and ceramic components, giving it the strength of the two components. Cermet for machining tools is hard, rough, and has good resistance to wear. These cutters work well for applications that require precision and high dimensional accuracy.
Expert Tips for choosing the Right Form milling Cutters
Having discussed the different types of form milling cutters earlier, you need to use the right form milling cutter to ensure consistent results. Here are some helpful considerations to help choose the right form cutter that meets the requirements of your application:
Profile and Dimension Requirements
The form milling cutter geometry hinges on the workpiece profile and dimensional requirements. Consider the complexity of the feature, profile design, tolerance requirements, and surface finish specifications when choosing a form cutter. The cutter geometry and tooth design exhibit considerable influence on machining performance. AT Machining experts advise using a milling cutter with a diameter and width that matches the milling machine you are using and the workpiece.
Workpiece Material
The type of material a workpiece is made of and its hardness is a key consideration when choosing a form cutter. Different machining materials require varying forms of milling cutters. For instance, machining experts recommend using High-Speed Steel cutters for softer materials while carbide tools are better for milling hard materials such as titanium.
Cost
Oftentimes, your budget will determine your choice of a form milling cutter. High-performance form cutters are usually more efficient and durable even though they cost more. However, these form cutters ensure cost-effectiveness since they minimize downtime and maintenance costs. AT Machining experts suggest using the best form milling cutter that strikes a balance between tool life and effective performance with your budget.
The Tooth Design of the Form Cutter
Form cutters have different types of tooth designs, each working well for varying tasks. Form milling tools with straight teeth design are best for light-duty milling operations. Meanwhile, helical teeth designs work well for heavy-duty operations. Each of these teeth designs offers fine and smooth finishes.
Conclusion
Form milling is an indispensable process in today’s manufacturing, allowing the creation of difficult shapes that would be tedious or impossible with conventional milling techniques. This precision machining method drives innovation across different industries due to its unique ability to achieve precise cuts, work on a wide range of materials, and consistently create exact shapes.
