What is Bead Blasting?
Bead blasting is a form of abrasive surface finishing operation that involves the use of fine, spherical beads typically made from glass, ceramic, or stainless steel to process the surface of material. The small beads are accelerated using compressed air or a pressurized system to impact the surface at high velocity. This helps to eradicate surface imperfections, contaminants, or surface layers without producing deep erosion or deformation.
Unlike harsher methods like sandblasting, bead blasting offers a gentler approach, creating a smooth, satin, or matte finish. It enhances both the appearance and performance of the part. It’s commonly used in industries like aerospace, automotive, medical, and manufacturing. These Industries use it for purposes such as heavy-duty cleaning, cosmetic improvement, and preparation for painting or coating.
One of the main advantages is that blasting can be used to maintain dimensional accuracy while increasing surface uniformity. This makes it highly suitable for precision parts where both function and form must combine.
How Bead Blasting Works
Bead blasting operates by forcibly propelling small round media against a surface using compressed air or centrifugal force. A nozzle in the blast chamber or cabinet concentrates the high-speed stream of beads onto the part to be processed. Upon hitting the surface, the beads create micro-indentations that clean, smooth, or texture the material.
The operation doesn’t take away much material, making it particularly useful for fragile parts that require a uniform finish without changing their dimensions. Rather than cutting into the surface like more aggressive abrasives, the rounded nature of the beads “peens” or slightly compresses the surface, which can also enhance fatigue strength in certain metal surfaces.
Operators can control the outcome of bead blasting by adjusting the air pressure, nozzle distance, blasting angle, and media type. Lower pressures produce finer finishes, while higher pressures offer quicker cleaning. The result is a controlled, uniform finish that can prepare a surface for coating or enhance its aesthetic quality.
Types of Bead Blasting Media
The kind of bead blasting media selected plays an essential role in the quality of surface finish and overall bead blasting efficiency. There are various machining materials and media used depending on the desired result and the component’s material.
Here are some of them:

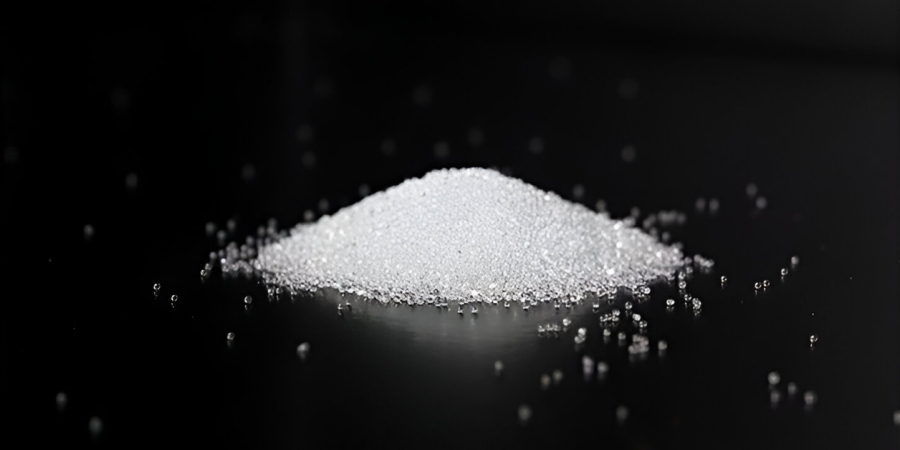

Glass Beads
Fine glass beads are the most common media used for bead blasting. They are produced from lead-free, soda-lime glass and are suitable for cleaning, peening, and surface finishing of metals. Glass bead media help in creating a uniform, satin finish with no damage to the base material, which makes them ideal for use on aluminum, stainless steel, and other soft metals.

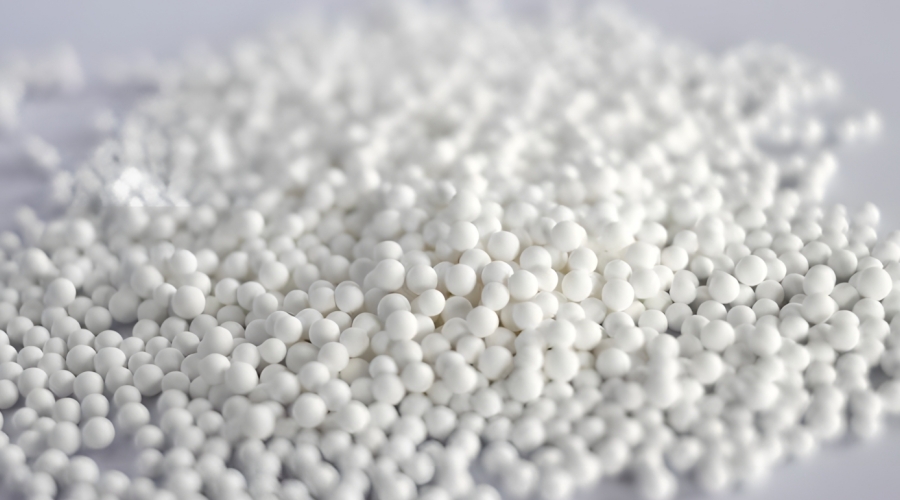

Ceramic Beads
Ceramic beads are more rigid and tougher than glass beads. They are utilized for uses where a more erosive finish is required or when longer blasting cycles are necessary. Ceramic media is ideal for harder metal parts and can produce a bright, matte finish.
Steel Beads (or Steel Shot)
Steel shot or steel beads are used in most peening applications where surface hardening is desired. This media is more massive and more aggressive and thus is best suited for the removal of scale, rust, and heavy-duty applications.
Plastic Beads
Plastic media beads are softer and are typically utilized when dealing with soft surfaces such as soft metals, composites, or plastics. Plastic media deburr and clean without dimensional change or surface damage.
Walnut Shells and Organic Media
For green and soft blasting, natural media such as walnut shells or corn cob granules are utilized. They’re ideal for use in applications where light abrasion is required, e.g., cleaning electronic components or automotive components without etching.
Properties of Bead Blasted Surfaces
Bead blasting alters the surface of a material both visually and physically. The resulting finish depends on factors like bead type, blasting pressure, and surface hardness.
Below are the key properties commonly associated with bead-blasted surfaces:
- Satin or Matte Finish: Bead blasting generally yields a matte or satin texture that is non-reflective and uniform. It is well-suited to components where glare reduction, understated aesthetics, or a clean, modern appearance is called for.
- Fine Surface Texture: The process helps in creating a uniform, smooth yet somewhat textured surface. The degree of roughness finish is a function of bead size and blasting intensity. Smoother finishes are produced by finer media, and coarser media introduce greater texture.
- Consistent Finish Quality: One of the primary advantages of bead blasting is being able to gain a uniform surface finish on complicated geometries. This consistency is particularly critical for cosmetic components or parts’ surface with stringent visual quality requirements.
- Enhanced Adhesion of Coatings: The micro-texture that bead blasting produces provides a slight increase in surface area, allowing adhesives, coatings, and paint adherence to the material more effectively. This is why it is a popular prep operation for powder coating or anodizing.
- Surface Cleaning and Deburring: Bead blasting cleans surface impurities such as scale, oxidation, oils, and machining residues. It can also remove small burrs without harming the integrity of the part.
- Minimal Dimensional Impact: In comparison to violent blasting techniques, bead blasting is quite mild. It does not change part dimensions considerably and hence is usable on precision parts where tolerances need to be maintained.
- Work Hardening (Mild): The effect of the beads blasting can be used to compress the surface layer slightly, producing gentle work hardening. This may improve fatigue resistance in certain metals, although the effect is generally small.
When to Choose Bead Blast Finish
Below are the cases where you’ll have to choose bead blast finish over other types of finishes:
When Surface Contamination Needs to be Eliminated Without Damage
One of the primary benefits of bead blasting is its capacity to clean surfaces effectively without damaging the substrate. Regardless of whether the surface is coated with rust, oxidation, paint, or welding scale, bead blasting takes it off gently and uniformly.
This makes it particularly valuable for part restoration or preparation for additional finishing operations. It’s also very common in industries such as aerospace, automotive, and medical, where cleanliness is crucial before coating, bonding, or inspection.
When Preparing a Surface for Coating, Painting, or Anodizing
Bead blasting improves surface adhesion by producing a microscopically roughened profile. The texture provides a greater mechanical grip for paints, powder coatings, adhesives, or anodized coatings, resulting in a finish that is highly durable and longer-lasting.
On steel and aluminum parts to be coated, a bead-blasted foundation means fewer flaws such as peeling or blistering, so it is a key pre-treatment process in most industrial finishing operations.
When Dealing with Precision Components That Cannot Be Deformed
Unlike more aggressive surface treatments such as sandblasting or grinding, bead blasting operates with less force and heat. This makes it suitable for delicate surfaces or tight-tolerance parts that must maintain exact dimensions.
Machined components with fine features, threading, or thin walls can be bead blasted without distortion. This makes the technique ideal for aerospace fittings, surgical tools, and electronic housings.
When Light Deburring and Smoothing Are Needed
Fine bead blasting is an effective way to dull sharp edges, remove small burrs, or blend minor surface irregularities remaining from machining or fabrication. Though not a substitute for special deburring tools, it leaves a consistent finish that is smooth to the touch.
Abrasive blasting is suitable for components to be handled by ultimate users or assembled into close-fitting components, as it eliminates potential injury or assembly problems.
When You Need to Enhance Corrosion Resistance
Bead blasting enhances the corrosion resistance of metals such as stainless steel and aluminum. It closes the surface pores and drives out embedded impurities, producing a denser, tighter outer layer. In stainless steel, this passivation effect strengthens natural oxidation resistance. It’s especially valuable in marine, food-grade, and medical applications where corrosion protection is essential.
When Glare or Reflectivity Must Be Minimized
In applications where reflection of light is a problem, bead blasting eliminates glare efficiently. The matte finish scatters light instead of reflecting it directly, and it is easier to see or operate parts under intense lighting or sunlight. This is a functional necessity in optical, scientific, and medical devices where visibility without glare is essential.
Bead Blasting vs. Sand Blasting
Both sand blasting and bead blasting are abrasive finishing methods, but they function differently and give different results. Bead blasting employs small glass beads or ceramic media for cleaning or polishing a surface without damaging the material beneath.
It is a less aggressive process, best suited for applications where part dimensions need to be preserved and a smooth matte finish is required. Due to its gentle abrasiveness, bead blasting is frequently applied to sensitive metals, plastics, and even certain composites in industries such as aerospace, medical, and consumer electronics.
Conversely, sand blasting is more severe and often employs sand particles, aluminum oxide, or other abrasives. It is utilized in the removal of heavy corrosion, paint, rust, or scaling from hard surfaces such as steel or cast iron. Though it produces unwanted textures, this is an advantage for coatings and adhesives that need greater grip.
In short, bead blasting is the better choice for cosmetic finishes and more detailed work, and sand blasting is for heavy-duty cleaning or surface preparation that requires a more robust mechanical bond. The best choice is based on your material type, end-use application, and final desired surface appearance.
Pros and Cons of Bead Blasting
Here are the Pros and Cons of Bead Blasting:
Pros
- Produces a smooth, uniform matte finish
- Gentle on delicate materials and components
- Removes surface contaminants without altering dimensions
- Enhances cosmetic appearance
- Suitable for a wide range of materials (metals, plastics, etc.)
- Improves adhesion for coatings and paints
Cons
- Less aggressive – not ideal for heavy rust or paint removal
- Requires specialized equipment and media
- Glass beads can break down quickly, needing frequent replacement
- Can be time-consuming for large or heavily corroded surfaces
- May not be suitable for all surface preparation needs

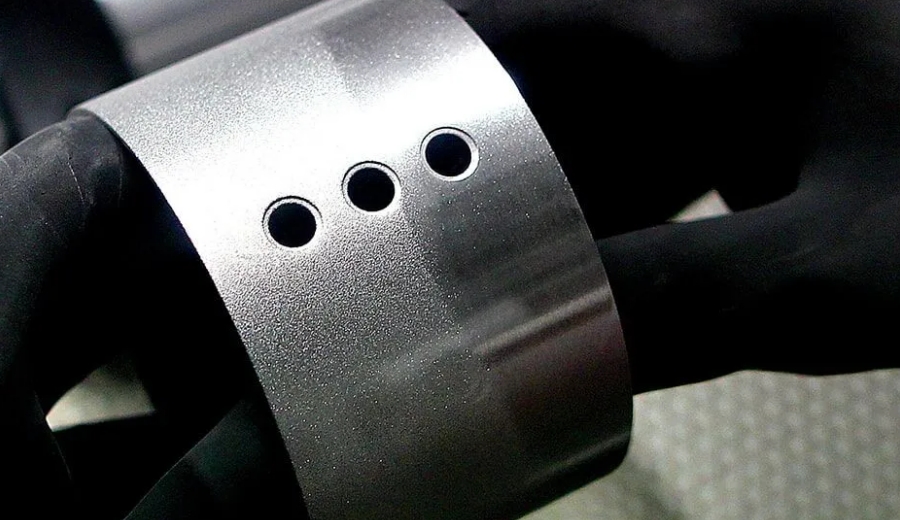

Applications of Bead Blasting
Here are the different industries that make use of of bead blasting process:
Medical Device Manufacturing
Bead blasting is commonly used in medical device manufacturing since it produces a clean, matte finish that’s contaminant-free and lacks impurities. The smooth, non-reflective surface enhances the effectiveness of sterilization and minimizes the potential for bacteria retention. Surgical instruments, orthopedic implants, and dental instruments frequently receive bead blasting treatment to improve both their hygiene and feel.
Aerospace Components
Precision and surface integrity are paramount in the aerospace sector. Bead blasting is used to prepare aerospace components like turbine blades, structural supports, and engine parts for coating or additional treatment. It removes oxides, machining residue, and burrs without dimensionally changing the part, guaranteeing safety and performance under high-stress conditions.
Automotive Parts and Custom Builds
Bead blasting is utilized by automotive manufacturers and custom fab shops for components such as engine blocks, transmission cases, and suspension pieces. It’s perfect for cleaning surfaces, removing rust, and creating a brighter finish for painting or powder coating. In show car construction, bead blasting is also employed to provide cosmetic finishes for visible metal components, helping create a smooth, matte look.
Consumer Electronics and Enclosures
Most electronics and gadgets of high quality have bead-blasted finishes for both functional and aesthetic purposes. Laptop casings, phone bodies, and enclosures for audio equipment are usually bead blasted to minimize glare and fingerprints. Not only does the finish appear sleek and contemporary, but it also provides a subtle texture that enhances grip and user comfort.
Best Practices and Tips for Bead Blasting
Here are a few best practices to get the most from bead bloating finishing:
Optimum Blasting Angles and Pressures
It is necessary to maintain the proper angle and pressure for reproducible glass bead blasting results. The ideal blasting angle is usually 45 degrees, allowing the media to impact the surface effectively without uneven wear or particle embedding.
Pressure settings must be optimized based on the abrasive material. Softer metals like aluminum oxide require lower pressures (40–60 psi), while harder metals like stainless steel can tolerate higher settings (up to 100 psi). Always refer to the media and substrate manufacturer recommendations to determine the ideal combination.
Preventing Surface Warping or Damage
Too much blasting or high pressure against light or thin sections will warp or fatigue the surface. Keep an eye on the time on each part and use smooth, even passes to avoid heat buildup or weakening of the structure. Always blast a sample part first, especially for custom manufacturing or prototyping, to ensure that the desired finish will be within spec without damaging the part.
Cleaning and Media Maintenance Tips
Clean the blasting cabinet and recycling system regularly to avoid contamination. Spent media can deteriorate over time and become combined with dust, oils, or residues, losing effectiveness. Periodically filter the glass bead media and replace it when indications of wear or contamination are evident. A clean blasting nozzle and hoses also provide consistent flow and clog prevention, or uneven blasting.
Quality Control Checks
Following blasting, it’s critical to examine parts for cleanliness, roughness, and uniformity. Utilize magnifiers or surface roughness testers to ensure the texture is to standard. In medical or aerospace industries, further testing, such as microscopic inspection or profilometry, may be required to ensure there are no embedded particles or surface irregularities. Having standardized QC procedures in place guarantees consistent finishes each time.
Conclusion
Bead blasting is a versatile surface finishing method used to produce clean, uniform, and matte surfaces across various industries. It improves aesthetics along with functionality, especially in medical, aerospace, automotive, and electronics applications.
With the right media, equipment, and techniques, bead blasting delivers consistent results. Although there are a few drawbacks to its application, the benefits it provides, especially for precision and cosmetics, make it a popular finishing choice in manufacturing today.
AT-Machining is a CNC machine shop that offers professional bead blasting as one of their value-added surface finish services. They are known for high-quality, cost-effective service that is ideal for demanding markets such as medical device manufacturing. If you need high quality finish for your CNC machine parts, contact us today to get started!
