What Is Poisson’s Ratio(v)?

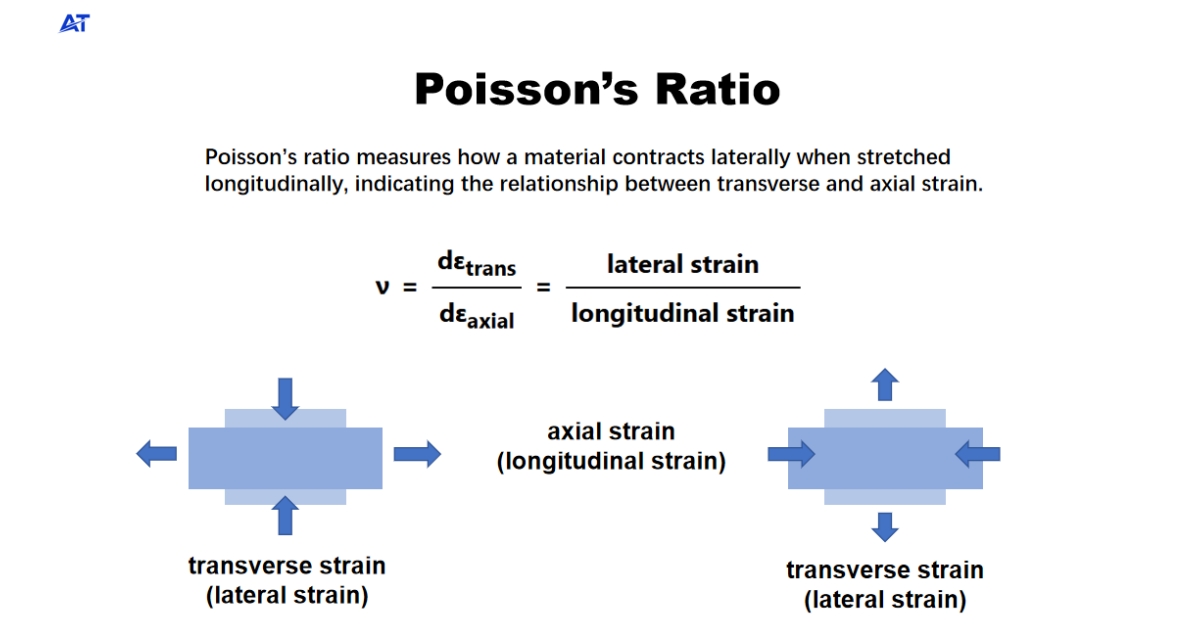

Poisson’s Ratio (V) refers to a numerical representation of a material’s parallel compression when subjected to an applied load. In material science, Poisson’s Ratio means the ratio of the lateral compression (transverse strain or transverse contraction strain) to elongation (axial or longitudinal extension strain). Poisson’s Ratio offers a mathematical theory on how the volume of a solid material changes laterally when stress acts upon it axially.
Changes in the cross-sectional area and length of a material because of lateral strain can be exemplified in two ways, including: A material gets thinner in the lateral direction when stretched in only one direction (uniaxial tensile or compressive stress), while a sample tends to grow thicker in the lateral direction if compressed in one direction.
Poisson ratio is an essential mechanical property that evaluates the changes that occur to the width of a material when compacted or extended along its length. Materials with low Poisson’s ratio values exhibit less lateral expansion under axial strain, while those with a high Poisson’s Ratio show more lateral change. Tensile deformation is considered positive, while compressive deformation is taken as negative.
An isotropic material maintains a Poisson’s Ratio constant between the axial and lateral strain. Specific materials (auxetic materials) possess a negative Poisson’s ratio. These negative Poisson’s ratio materials tend to expand in all dimensions when exposed to tensile stress.
To determine Poisson’s proportion, you have to divide the cross-over strain or change in width by the hub strain or change long. Poisson’s Ratio typically falls within the range of 0.0 to 0.5 for most materials, while elastic materials exhibit values near 0.5 due to their high compressibility. On the other hand, materials such as steel exhibit lower values around 0.3 since they are usually solid.

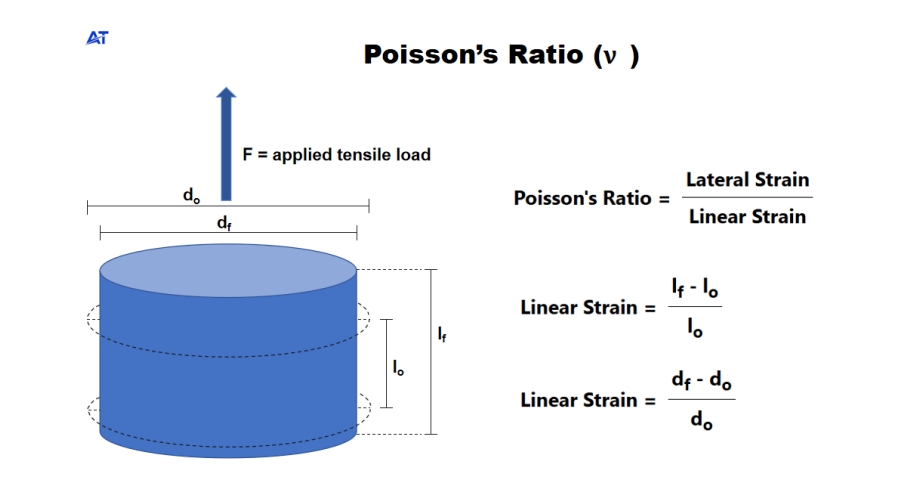

Case Study
- Original length (lo): 100 mm
- Original diameter (do): 10 mm
- Final length after tensile load (lf): 100.2 mm
- Final diameter after tensile load (df): 9.9974 mm
- Standard Poisson’s ratio for 6061-T6 aluminum: ~0.33 (reference value)
Calculation Process
What Is Young’s Modulus?
Young’s Modulus or elastic modulus (E) is the measure of the elasticity or ability of a material to withstand deformation when subjected to applied stress by gauging how a material compresses or stretches when an external force acts upon it. Engineers use the pressure-strain relationship to determine Young’s Modulus, where stress (𝛔) is the applied force per unit area, and strain (Ɛ) is the subsequent deformation ratio.
Young’s Modulus examines the relationship between a material’s stress and strain. It is numerically indicated as the proportion of pressure (applied force per unit area) to strain (change long per unit length) along the versatile area of the material’s pressure-strain strain bend. Engineers estimate Young’s Modulus through physical testing strategies such as pressure and twisting tests.
In simpler terms, Young’s Modulus quantifies the capacity of a material to resist deformity under a given load to gauge its rigidity. It is usually represented in units of tension (Pascals or N/M2). Materials with lower Young’s Modulus values are more adaptable than those with higher values, which are significantly firmer and stiffer and require more mechanical load for twisting to occur.
Exploring Material Elastic Properties and Applications
Product designers and engineers often utilise materials with high Young’s modulus for load-bearing applications because they are firm and oppose distortion. More importantly, they require a higher load to incite strain or twisting. Below are common examples of materials with a high modulus of elasticity:
- Diamond exhibits the highest modulus of elasticity amongst known materials because of its high valence electron density (1220 GPa)
- Tungsten carbide (450-650 GPa)
- 316 Stainless steel (195 GPa)
- Chromium-Molybdenum Steels like 4140 (213 GPa)
- Sapphire (435 GPa)
Sam
The founder of AT-Machining has 30 years of CNC experience, dedicated to solving complex design and machining challenges for customers.
🔗 Best Practice
Align machining paths considering Poisson’s Ratio to minimize lateral deformation and dimensional errors, especially when clamping or releasing thin-walled or precision parts.
Materials with low Young’s Modulus are adaptable and are perfect for applications where deformity is beneficial, including gaskets and O-rings. Silly putty is a typical example of a material with a low elastic modulus. Poisson’s Ratio impacts the material’s reaction when subjected to pressure or stretching force. Materials with a low Poisson’s Ratio experience less contraction along the side, inciting clasping.
Poisson Ratio vs. Young’s Modulus: Exploring Interplay and Applications
Young’s Modulus and Poisson’s Ratio possess an intrinsically complex connection in portraying the reaction of a material to mechanical pressure. Poisson’s Ratio describes the volumetric changes in a material (a ratio of transverse strain) in the directions perpendicular to the applied load/stress. While Young’s Modulus possesses units of tension and gauges the material’s resistance to stretching force or applied strain.
A material with a higher Poisson’s Ratio will often contract pivotally and extend horizontally when subjected to ductile or compressive deformation. This parallel development opposes the pressure or prolongation and influences the overall deformation of the material. Young’s modulus influences the extent to which a material misshapes under the applied pressure.
As product teams push the limits of development and effectiveness, they rely on Poisson’s Ratio and Young’s Modulus to understand and predict materials’ behaviour when subject to different mechanical stresses. These mechanical properties combined influence the structural behaviours of materials, dictating variables like steadiness, burden circulation and diversion. For instance, a material with low Poisson’s proportion and a high Young’s Modulus would be perfect for applications where minimal deformation and lateral expansion are critical –like in columns or beams that must maintain rigidity under load or stress.
Max
Max is a technical sales expert with 10 years of engineering experience who has solved hundreds of complex technical difficulties and challenges for customers.
🔗 Best Practice
Always factor Poisson’s Ratio into tolerance calculations for components with tight fits or thin sections to prevent assembly issues and dimensional inaccuracy.
To effectively plan and break down structures that can withstand forces in real-world applications, it is important to understand the differences between Young’s Modulus and Poisson’s Ratio. Young’s Modulus gauges the solidness of a material and its capacity to resist deformation, while Poisson’s ratio characterizes the propensity of engineering materials to change in width when exposed to applied stress.
Key Takeaways
Whether you are a new engineer trying to gain a contemporary understanding of material mechanics or a seasoned designer who seeks a refresher, we have discussed everything you need to understand to achieve a better material design. These concepts offer the insight you need to impact your project from product design to construction.
Whenever you need a certified and reliable CNC machining expert with many years of experience and innovative machines to handle the complexities of your project, think AT Machining. Don’t hesitate to contact us; our professionals have a deep understanding of the fundamental metrics of materials science and can fully exploit their computational methods and analytical solutions to determine the ideal choice for your project!
Yuki
Technical sales engineer at AT-Machining with 12 years of CNC experience, specializing in materials selection and surface treatment solutions.
🔗 Best Practice
Adjust clamping positions and forces during multi-axis CNC machining, to accommodate lateral expansion caused by Poisson’s Ratio and avoid hidden stresses or part distortion.
