Overview of Ceramic CNC Machining
Ceramic CNC machining involves the use of a CNC (computer numerical control) program to guide the cutter’s movement as it carefully removes material from the ceramic workpiece to create the desired features and shape. Generally, ceramics are not easy to machine due to their extreme hardness and brittleness, which makes them susceptible to cracks or breaking when cutting. However, CNC machining works well with a plethora of high-performance materials, including ceramics.
CNC machines allow for precise control of cutting, shaping, and drilling of ceramic substrates, creating several high-quality components with complex geometries and tighter tolerances. CNC machining of ceramic components allows product engineers and manufacturers to achieve extremely tight tolerances with a lower error margin.
This machining process employs different techniques with specialized cutting tools to maintain minimal tool wear and achieve a smooth surface finish on machined ceramic parts. Machined ceramic parts do not corrode easily and maintain excellent thermal stability. For this reason, they are ideal for components for harsh working environments because they function well and have an extended lifespan.
Standard Types of Ceramic Materials Used in CNC Machining
Manufacturers often choose each ceramic material for CNC machining based on their unique properties. Here are the compatible types of ceramic materials for CNC machining:

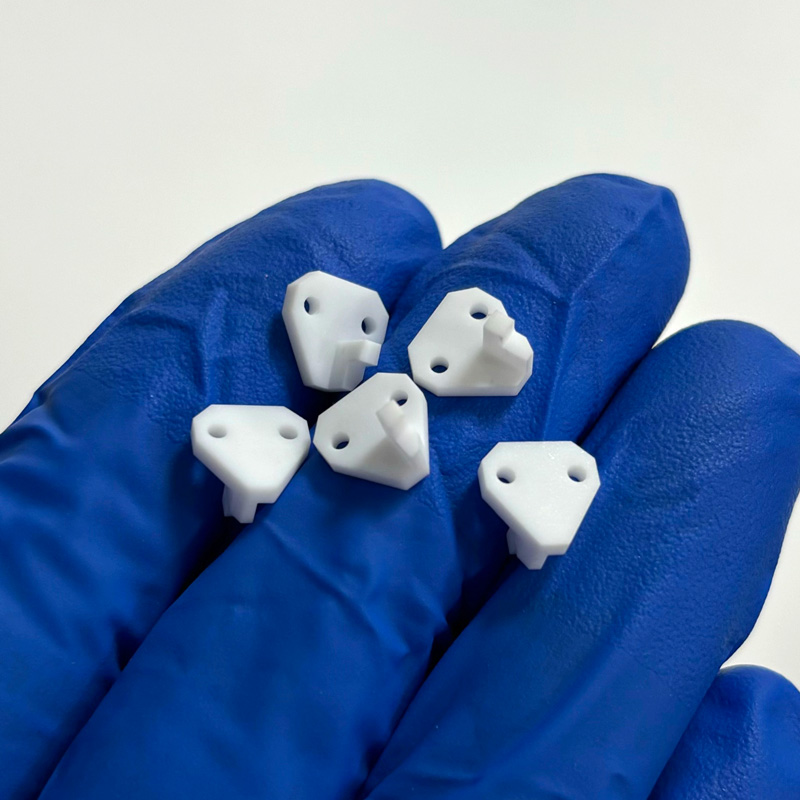

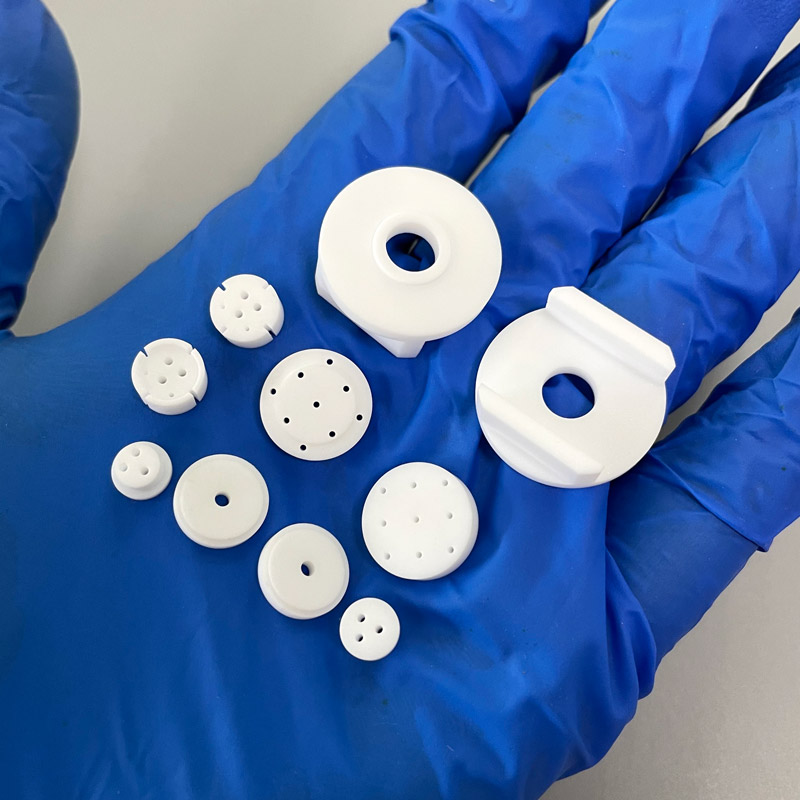

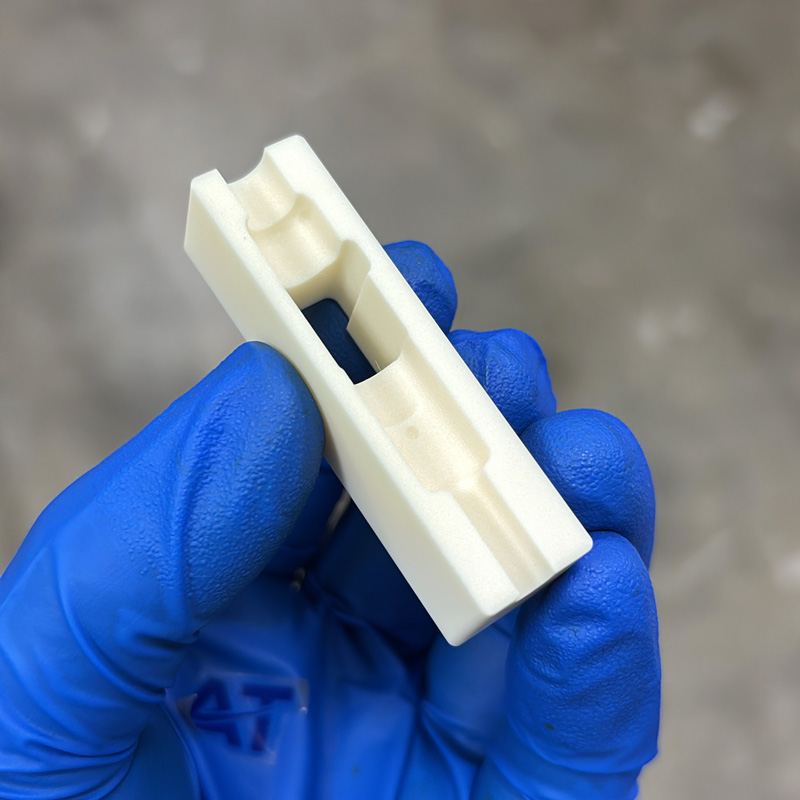

Macor
This is an easy-to-machine glass ceramic material with an excellent machinability rating and high performance in harsh working environments. Macor is a unique option for applications where insulation properties are necessary, such as in electrical components. The low thermal conductivity properties of this material make it a widely embraced choice in high-temperature applications.
Additionally, you can machine Macor into complex geometries with standard CNC milling and cutting tools without the need for post-machining heat treatment. The medical devices and aerospace industries benefit extensively from CNC machining Macor because of its precision machining capability and exceptional accuracy.

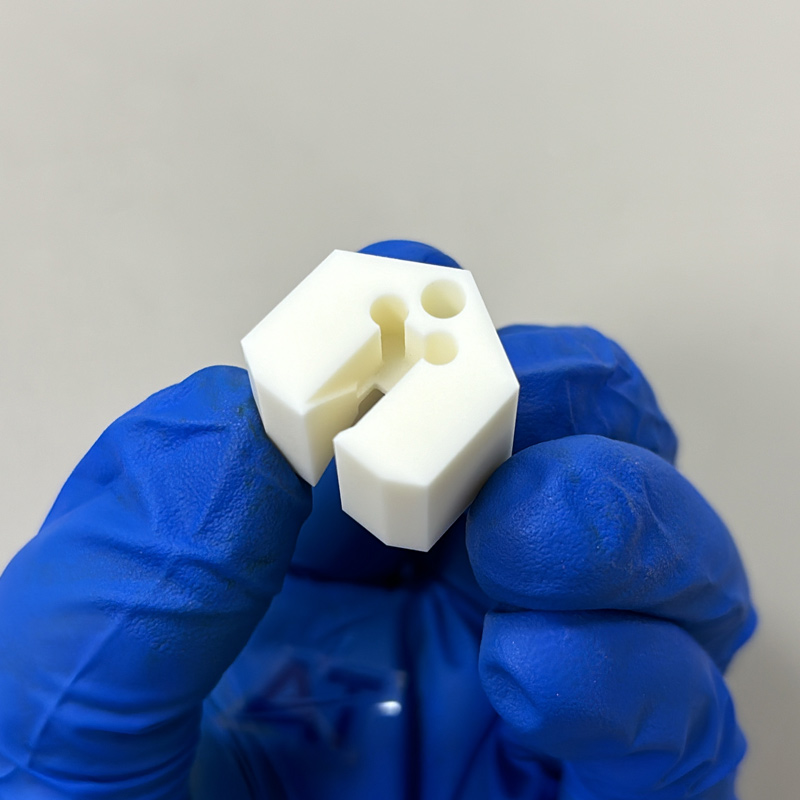

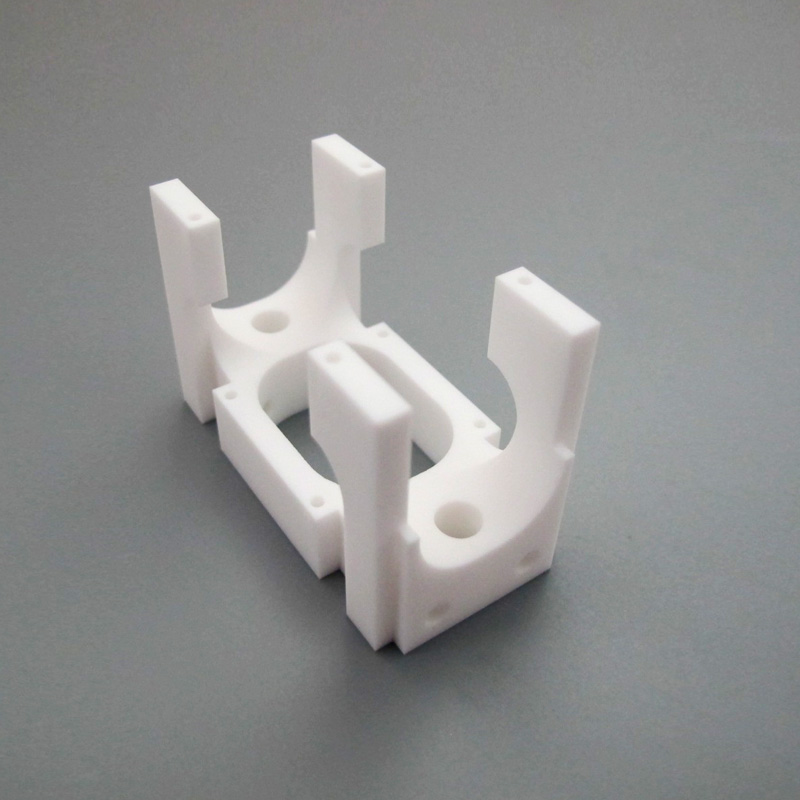

Alumina Ceramics
Alumina ceramics or aluminium oxide are commonly used CNC machining materials because of their good electrical insulation, excellent heat, corrosion, and wear resistance, and high hardness. These ceramics, especially alumina oxide, are often utilized in industries that require high-performance materials, including defense, medical devices, aerospace, and automotive.
Alumina ceramics exhibit high-temperature resistance while maintaining structural integrity, making them an ideal choice for components subjected to thermal cycling, like turbine components. The superior hardness and corrosion resistance of these materials contribute to their wide use in manufacturing components for diverse applications.
Aluminum Nitride
Manufacturers often use aluminum nitride in CNC machining due to its excellent electrical insulation and lower thermal expansion coefficient properties. As such, this ceramic material is optimal for applications like electrical insulators and heat sinks where heat management is pivotal. Alumina nitride can maintain its structural integrity and offer superior resistance to wear as it withstands high temperatures.
Manufacturers often use aluminum nitride for aerospace and electronics applications where thermal expansion resistance and precision machining are paramount. The ability of alumina nitride to dissipate heat effectively without sacrificing performance is one of its key strengths and reasons why product engineers often use it for CNC machining processes.
Silicon Carbide
This is another commonly used ceramic material used in CNC machining of robust and wear-resistant components. Silicon carbide is one of the toughest ceramic materials, making it a perfect choice for precision machining operations that utilize specialized cutting tools that can withstand significant wear.
The superior shock resistance of silicon carbide makes it a widely embraced ceramic material for making high-performance products in the aerospace and defense sectors. Silicon carbide is best suited for applications like water-resistant industrial parts, turbine components, and heat exchangers since it can maintain its strength at high temperatures.
Alumina Silicate
Alumina silicate, also called lava, is another prominent ceramic material used in CNC machining processes due to its high strength and durability. It exhibits exceptional resistance to corrosion and wear, making it suitable for making components exposed to harsh or corrosive environments.
Machined alumina silicate components are often found in the manufacturing and defense industries because their thermal stability allows the material to perform well in high-temperature conditions. Alumina silicate is ideal for making components with excellent shock resistance and insulation.
Product designers and engineers in the manufacturing industries often rely on alumina silicate CNC machining to create precision ceramic components with high tolerances and superior surface finish suitable for applications that experience high temperatures and mechanical stress.
Glass Ceramics
Glass ceramics are versatile CNC machining materials due to their distinct combinations of properties, including wear resistance, low thermal expansion, and high strength. Manufacturers often choose glass ceramics for applications where high precision and durability are necessary, particularly electronics, medical devices, and aerospace sectors.
The thermal stability and chemical corrosion resistance of these ceramics make them perfect for manufacturing complex components with precise tolerances. Moreover, glass ceramics exhibit excellent surface finish quality, which makes them ideal for applications requiring a smooth surface, like high-end laboratory equipment and optical devices.
Graphite Ceramics
Graphite ceramics are a popular CNC machining material with excellent resistance to high temperatures, good thermal conductivity, and low thermal expansion. This distinct combination of properties makes these ceramics ideal for making components that perform well in applications where there is high heat and consistent thermal management is important, especially in the electronics and aerospace industries.
These ceramic materials exhibit good machinability. Hence, you can easily process them with CNC milling machines and cutting tools without experiencing rapid tool wear. Manufacturers often use graphite ceramics for electrical contacts, precision components for furnaces, and molds in industries where heat and electrical insulation are critical factors.
Boron Nitride
Boron nitride possesses unique insulation properties and excellent thermal conductivity, which makes it a highly regarded ceramic material in CNC machining. This unique class of ceramic contains boron and nitrogen. Its key properties include a low dielectric constant and loss tangent. Manufacturers often use boron nitride for applications where heat management and electrical insulation are paramount, such as in electronics and aerospace industries.
This ceramic material exhibits excellent machinability, which makes it easy to process with CNC milling machines without severe complications. Boron nitride possesses great chemical stability that allows it to perform well in corrosive environments. Heat shields, high-temperature components, and electrical insulators are typical uses of this ceramic material.

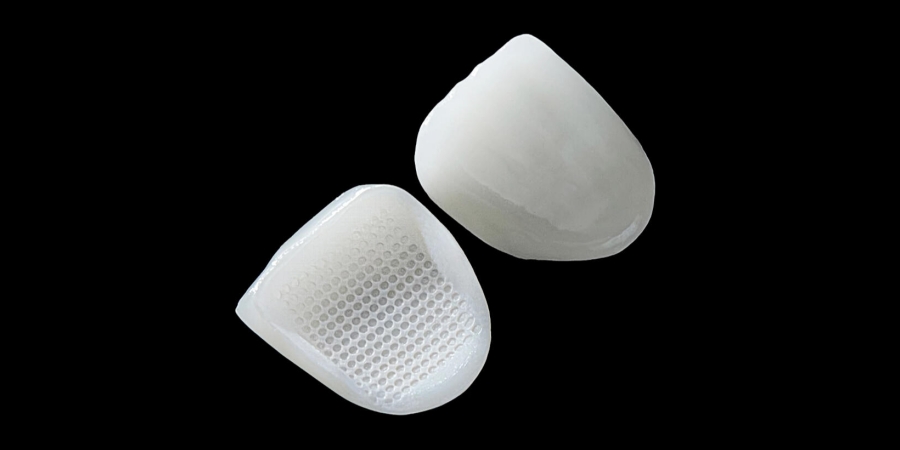

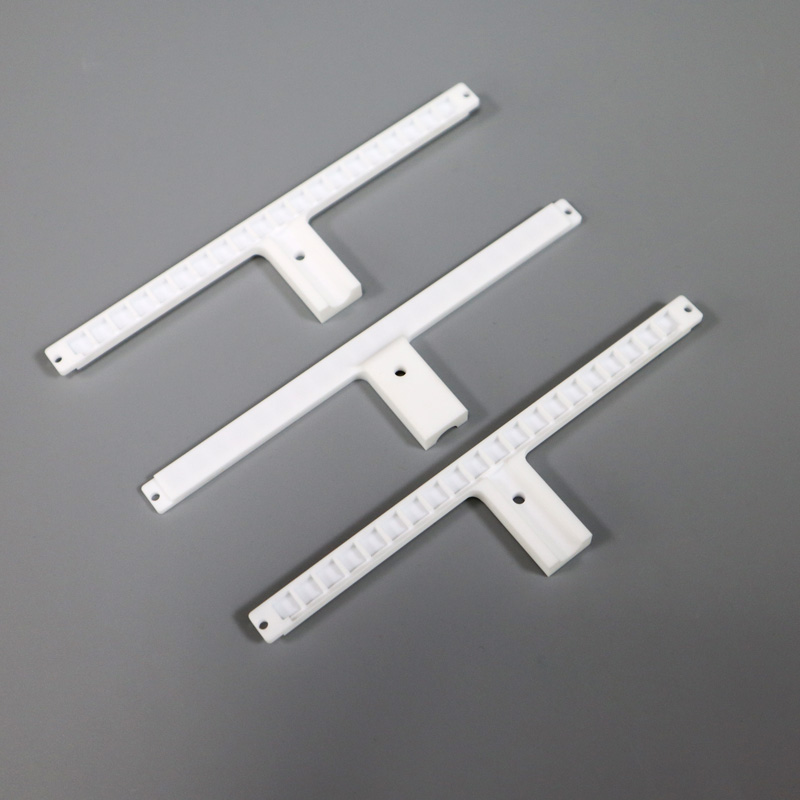

Zirconia
Zirconia or zirconium dioxide is known for its excellent corrosion and chemical resistance and exhibits higher thermal resistance than alumina silicate. Moreover, these attributes make zirconia ceramics a standout choice for dental applications and prostheses.
Although zirconia absorbs stress better than other ceramics, it can be extremely difficult to machine due to its high hardness. You can machine it at high spindle speeds. Product manufacturers often choose zirconia ceramics for structural components, including ball valves, watch cases, ball bearings, ball seats, and fiber optic pins.
In addition, zirconia exhibits optimal thermal expansion, mechanical strength, and toughness at room temperature, making it ideal for producing functional ceramic parts like induction heating tubes.
Mullite
Mullite is another commonly used type of advanced technical ceramics in CNC machining because of its high-temperature resistance, low thermal expansion, and excellent thermal stability properties. Product designers and manufacturers in industries that require precise components that can withstand extreme heat use mullite to create machined parts that can perform well in demanding environments.
In addition, mullite also exhibits high temperature stability, which allows it to work well with CNC machining processes like milling and laser cutting. Hence, ceramic parts made from this material can endure rapid changes in temperature without cracking or breaking. Furthermore, this material is perfect for insulation applications such as kiln components, furnace linings, and ceramic tubes because of its moderate strength and low thermal conductivity.
Mycalex
Mycalex is a notable ceramic material well-known for its excellent thermal stability and high insulation properties. This machinable glass-mica ceramic is the perfect material for applications requiring electrical insulation, including aerospace and electronics industries.
Mycalex ceramic allows the creation of cost-effective, high-precision ceramic components since it works well with standard CNC tools. Additionally, it resists thermal shock and maintains integrity under rapid temperature changes to ensure the best results in different manufacturing processes.
Titanate Ceramics
These ceramics are popular for their excellent electrical insulation properties and high dielectric constants. Titanate ceramics possess high resistance to wear and heat, making them a perfect choice for fabricating components with high temperature endurance.
These ceramics exhibit low thermal expansion that helps maintain dimensional stability in applications involving significant thermal cycling. Manufacturers often use titanate ceramics for electronic components like capacitors and substrates for semiconductor devices because of their exceptional insulation properties.
Quartz
Quartz is the go-to choice when you need a highly durable ceramic material with excellent thermal stability, optical properties, and superior hardness. Manufacturers often use quartz to create CNC-machined precision ceramic parts with high heat tolerance due to its combination of properties.
Also, quartz exhibits excellent chemical resistance, which makes it effective for making aerospace, optica,l and electronic components. More importantly, you can leverage advanced machining techniques like surface grinding and laser cutting to machine quartz efficiently for optimal results.
Steatite
Steatite or high-frequency ceramic is a notable ceramic material for CNC machining. When compared to the other ceramic materials, it is a cost-effective option with impressive mechanical strength, exceptional electrical resistance, low dissipation factor, and minimal dielectric loss. Manufacturers commonly use this ceramic material in applications where temperature resistance and insulation are crucial. Manufacturers use steatite to make insulators found in broadcast antenna equipment and fire-rated terminal blocks.
Essential Techniques Used in CNC Ceramic Machining
Manufacturers across various industries depend on various techniques to shape and finish ceramics, each of which is tailored to handle the unique characteristics of these materials. Here are some of the commonly used machining techniques:

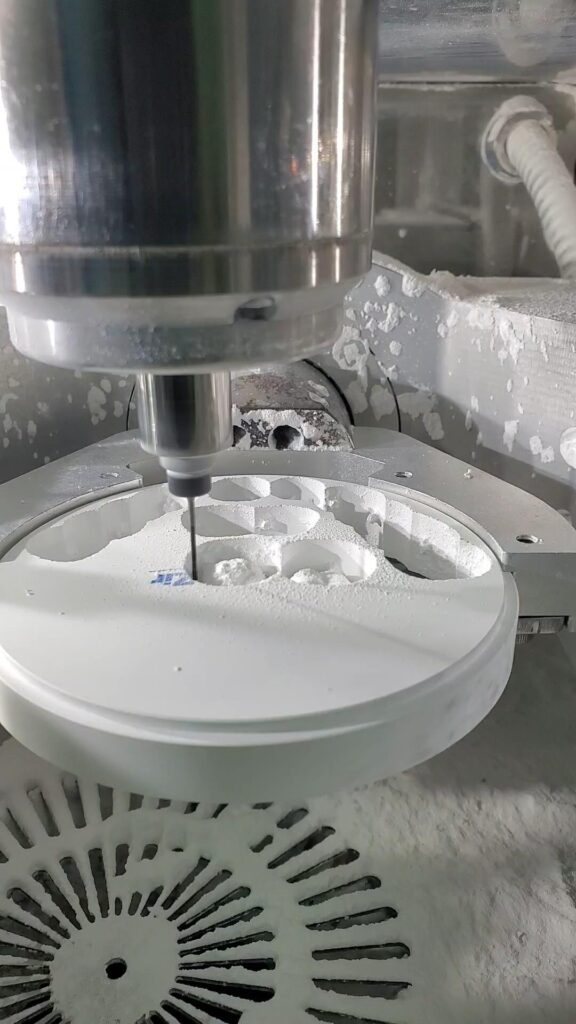

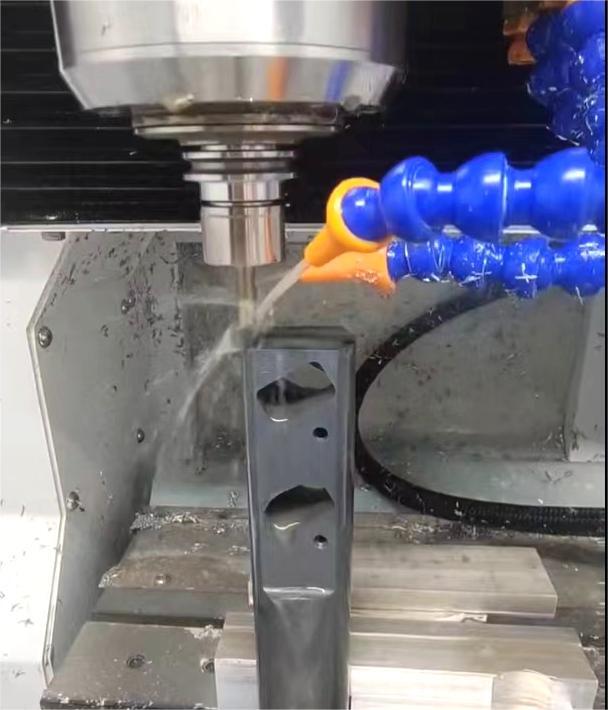

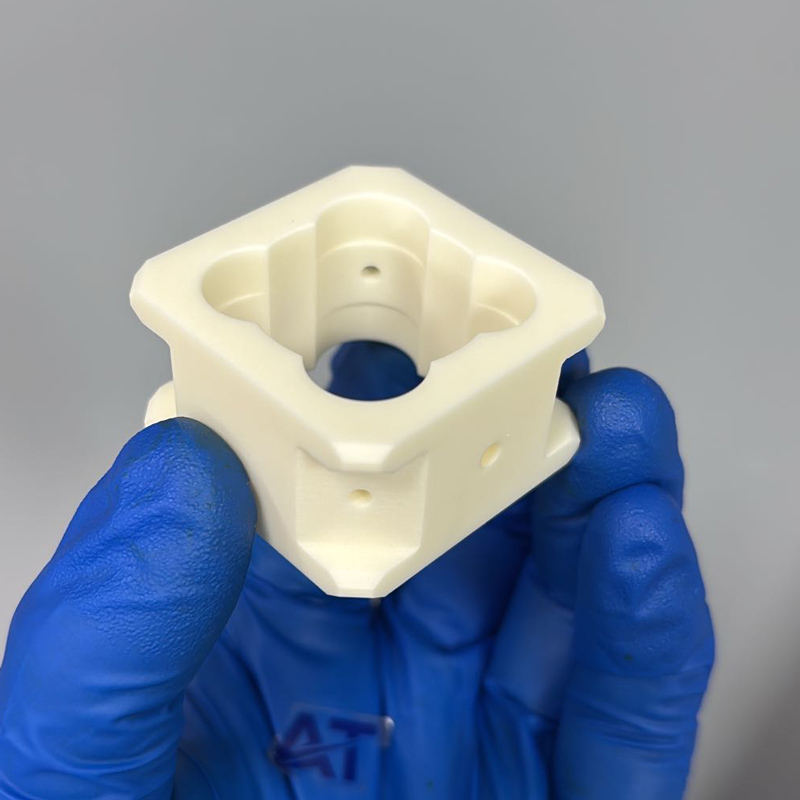

CNC Milling

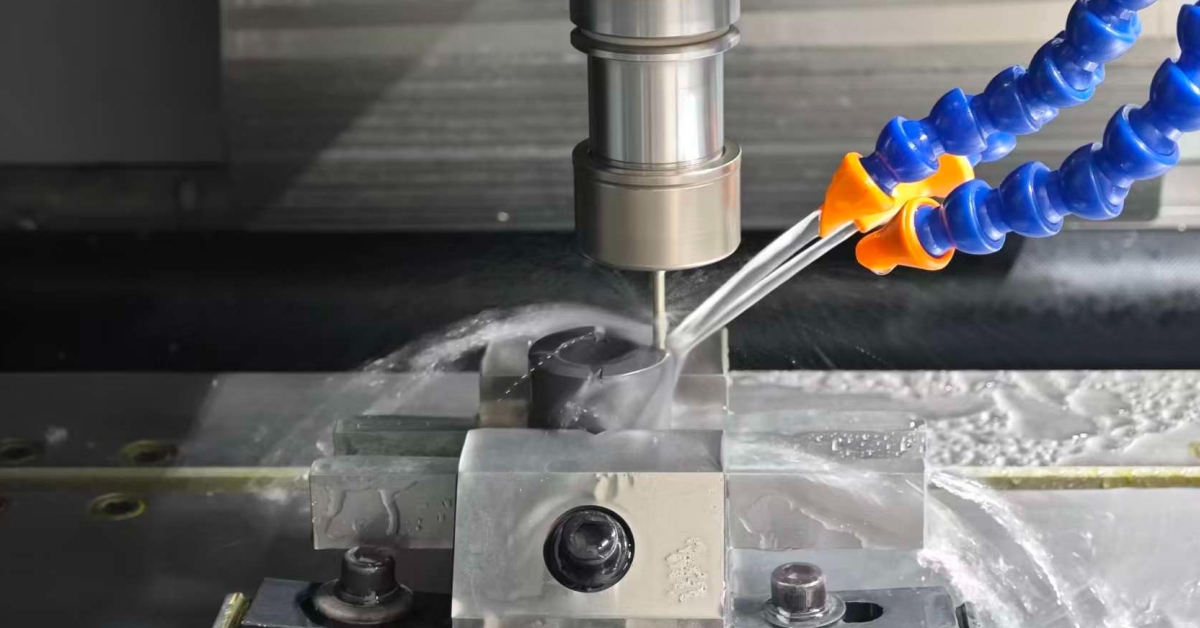

CNC milling is one of the key methods machinists use to shape ceramic workpieces into desired geometries. This ceramic machining process involves using rotary cutting tools guided by a CNC program to shape the workpiece into the desired form and add desired details. Machinists often use special diamond tooling, carbide tools, or diamond-coated tools to machine ceramics so as to minimize rapid tool wear.
CNC milling of ceramic components allows for precise and repeatable cuts to achieve complex shapes, intricate geometries, and fine details. Product designers leverage the precision tolerance of CNC milling technology to achieve a range of designs and maintain tight tolerances.
Core Drilling
Core drilling is a special type of hole-making technique that removes a cylinder or core of material from a solid block. Machinists use a hollow, cylindrical drill bit to make clean and precise holes in ceramic parts. The drill bits used in this technique often have a diamond tip or are coated with diamond, which reduces the stress exerted on the material, mitigating the risk of chips or cracks.
Machinists often employ core drilling when machining ceramic components that require precise, small-diameter holes, like components in the aerospace industry, particularly components that require holes for electrical wiring, fluid passages, or fasteners.
Laser Cutting
Laser cutting is a versatile and highly precise ceramic CNC machining technique for handling delicate or intricate parts. It involves focusing a high-powered laser beam onto the surface of the ceramic workpiece to cut through it with minimal force. The non-contact approach of this method helps to avoid fractures and cracks during the machining process since ceramic materials are brittle.
Laser cutting technology provides optimal results in machining thin ceramic sheets, intricate designs, or complex geometries that require tight tolerances. The concentrated heat of the laser delivers precise cuts that form clean edges without causing wear on the tool or removing excessive material, making it a perfect choice for precision ceramics machining.

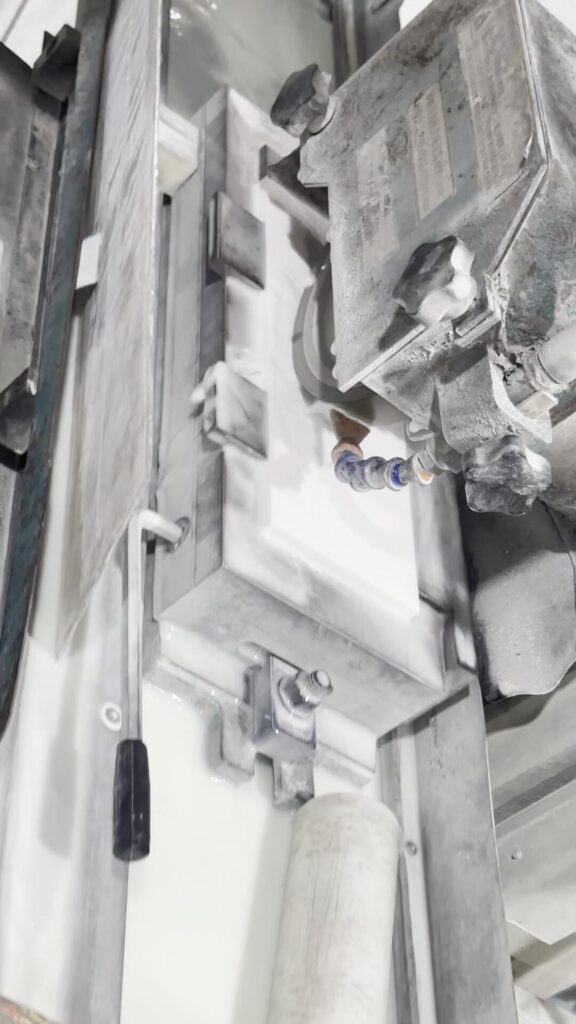

Surface Grinding
This ceramic machining technique involves using an abrasive grinding wheel to smooth and improve the surface of ceramic workpieces. Machinists typically use surface grinding to achieve a smooth and polished finish in ceramic components, particularly those intended for high-stress environments.
The grinding wheel is usually made from cubic boron nitride or diamond, and it effectively removes material in small amounts to achieve the preferred surface finish texture without affecting the material’s integrity.
Diamond Grinding
Diamond grinding is a primary technique in ceramic CNC machining. It typically involves the use of machines with diamond-coated grinding wheels to cut through the ceramic material with peak efficiency, ensuring minimal tool wear and accuracy. Machinists often employ this method to create high-precision ceramic components with complex geometries and tight tolerances. Besides, the precision shaping of this advanced technique ensures a superior surface finish that can meet stringent industrial requirements.
The grinding wheels used in this process are often made from diamond, making them extremely hard and resistant to wear. More so, the hardness of diamond reduces the generated heat during the process and reduces the risk of thermal cracking during the machining process. Machinists often embrace diamond grinding in machining ceramics like silicon carbide or alumina because it provides fine tolerances and is useful for machining intricate shapes.
ID slicing
Inner diameter slicing is a standard machining technique for cutting thin, precise ceramic slices. This process involves slicing through the ceramic material with a blade or thin wire to ensure reduced kerf (material) loss and achieve a clean cut. It doesn’t require extensive machine setup and provides excellent results in the manufacturing of high-precision components such as silicon wafers.
ID slicing is best suited for the production of ceramic components that require high tolerance and a smooth finish. Most machinists often employ this method in cases when it is crucial to maintain the material’s integrity during machining, like when cutting delicate ceramics like silicon carbide or boron nitride.
Isostatic Pressing
This is another key technique commonly used in CNC machining ceramics because of its ability to create uniform, high-density parts. The isostatic pressing method uses a fluid medium to exert equal pressure from all directions to ensure an even compression on the ceramic workpiece. This method is highly effective for handling ceramic parts with complex designs or shapes that require a long life span and high strength.
Aerospace and defense components manufacturers often utilize this process in applications that require consistent mechanical properties and precise dimensions. Isostatic pressing is especially compatible with ceramic materials like aluminum nitride and silicon carbide, which are highly regarded for their wear resistance and excellent insulation properties.
Wafer Dicing
Wafer dicing is a fundamental ceramic CNC machining technique suitable for cutting ceramic substrates and silicon wafers. This process involves using a high-speed rotating blade to slice through thin ceramic materials with high precision. The wafer dicing technique is especially effective for machining small, intricate ceramic components with tight tolerances.
This process provides excellent accuracy that helps reduce material loss and achieve an excellent surface finish on ceramic components. Manufacturers in the electronics industry often employ wafer dicing to achieve precise cutting when working with ceramics like borosilicate glass or silicon carbide.
Hot Pressing
This technique, used in ceramic CNC machining, involves the simultaneous application of heat and pressure to shape ceramic materials into specific designs or dimensions. The hot pressing process is effective in forming ceramic components with complex shapes from powders such as silicon carbide or aluminum nitride. The applied pressure and high temperature harden the ceramic material, increasing its strength and resistance to wear.
Hot pressing is a fundamental technique machinists adopt for applications where high thermal conductivity, mechanical strength, and insulation are non-negotiable. Aerospace components manufacturers often embrace this technique to create high-performance components with high consistency and precision.
Best Practices for Overcoming Common Challenges of CNC Machining Ceramics
Machining experts often encounter several challenges in CNC machining ceramics due to several factors. Here are some helpful considerations to help achieve the best results when cutting ceramic materials:
- Since ceramic materials are inherently brittle, machining experts recommend adjusting tool paths, optimizing CNC milling spindle speed, and monitoring cutting forces to minimize vibrations, reduce tool stress, and stabilize the workpiece.
- Using cutting tools made from materials like cubic boron nitride (CBN) or diamond when machining ceramic parts can help minimize friction, manage heat effectively, and extend tool life. Also, protective layers like diamond-like carbon (DLC) tool coating can help ensure the cutting tools last longer and provide better accuracy.
- Utilize multi-axis CNC machines when machining ceramic components with complex designs, particularly fragile features and intricate details, to allow the cutter to engage the workpiece from multiple angles, ensuring improved accuracy and smooth surface finish.
- Apply high-temperature lubricants or coolants to manage generated heat effectively. Generous use of these cutting fluids can mitigate tool adhesion, prevent rapid tool wear, and thermal damage in machined ceramic parts.
- While standard CNC milling may suffice for machining relatively soft ceramics like boron nitride, you may need to choose advanced machining techniques like surface grinding or laser cutting to accommodate the requirements of materials with high hardness, such as silicon carbide.
- Avoid making sudden changes in cross-section when machining ceramic materials to prevent stress concentration. Thus, maintain smooth and gradual transitions between different sections of your design to avoid workpiece fractures.
- Maintain adequate spacing when drilling holes in ceramic parts to maintain the structural integrity of the material. Drilling holes that are too close can weaken the material’s structure, resulting in cracking or breakage.
- Avoid sharp corners or pointy edges in your ceramic part’s design to prevent cracks caused by concentrated stress. Instead, add gentle curves, filleted corners, or rounded pockets to ensure better structural integrity in your parts.
Conclusion
Ceramic CNC machining is a standout choice when you need precise ceramic components with consistent quality, excellent surface finish, and in required amounts. CNC machines can effectively manage the brittleness and low tensile strength of the various ceramic materials to achieve optimal outcomes. However, AT Machining is the best partner for you if you need the help of professionals when working with ceramic materials.
AT-Machining is a one-stop CNC shop that provides comprehensive ceramic CNC machining services. Our expert team can leverage our cutting-edge technology and expertise and collaborate with you to optimize your project from design stages to completion. We possess a reliable quality control and inspection team and mechanism that allow us to meet stringent industry requirements and provide a seamless machining experience. Don’t hesitate to contact us today. We can transform your concept into precise and long-lasting ceramic components!
